When 22 panels isn't enough. The 30-panel Commercial kit is built for full shop ceilings, showrooms, double-deep garages, and commercial bays. A single continuous hex grid wrapped in a border frame, throwing roughly 105,000 lumens of 6500K daylight across the space. This is the kit you spec when the room itself is the statement.
At Commercial Scale, Build Quality Isn't Optional
Aluminum frames throughout, including the border. No sag, no warp, across the entire span. Plastic kits this size fail; aluminum holds shape permanently.
Copper wiring, 3-pin locking connectors at every joint. More current capacity, no points working loose over time.
Fire-resistant connectors, all of them. Non-negotiable when you're running this much LED overhead.
Spare parts included and stocked in-house. We're a DFW business, not a dropshipper. We keep the parts.
2-year warranty from a team you can actually reach.
Specs
Panel count
30 hexagon panels with border frame
Assembled size

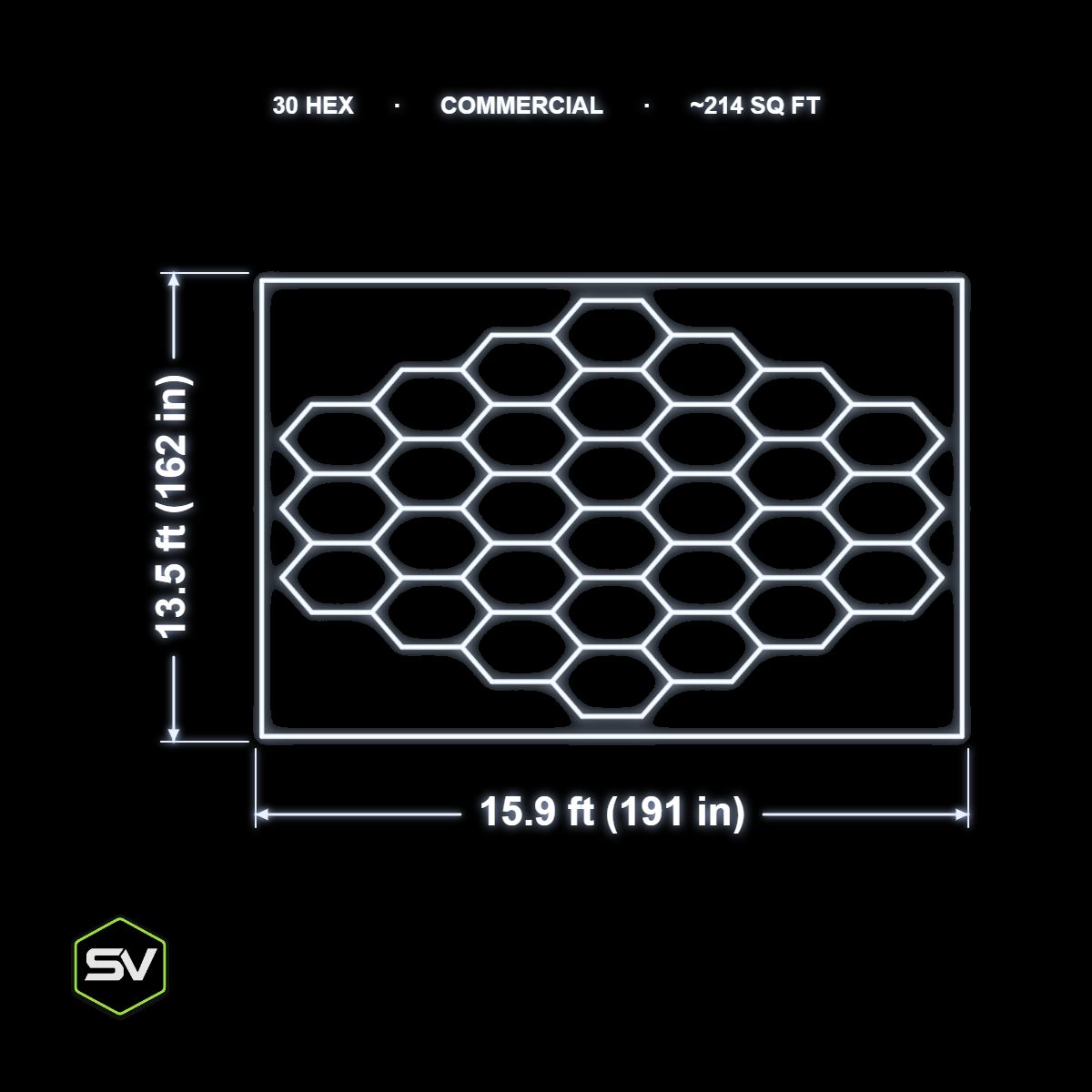

Approx. 15'10" W × 13'6" H (±). Confirm against your ceiling before ordering.
Brightness
~105,000 lumens · 6500K daylight white · CRI ≥90
Electrical
AC110V · ~910W · ~8.3A
Frames
Aluminum, no sag, no warp
Wiring
Copper, 3-pin locking connectors throughout
Dimming
Full brightness, fixed (non-dimmable)
Install options
Flush mount (included) or suspended (cable kit)
Warranty
2 years, spare parts included
Power Requirements
Total draw
~910W (~8.3A at 110V)
Power feeds
Ships pre-split across 3 power feeds so no single connector run is overloaded
Electrical
Have a licensed electrician confirm the circuit you connect to can carry the load shown above.
Power figures are calculated from component wattage (6W short tubes, 16W border rails). Confirm exact load against the manufacturer spec sheet. Not a substitute for a licensed electrician.
What's in the Box

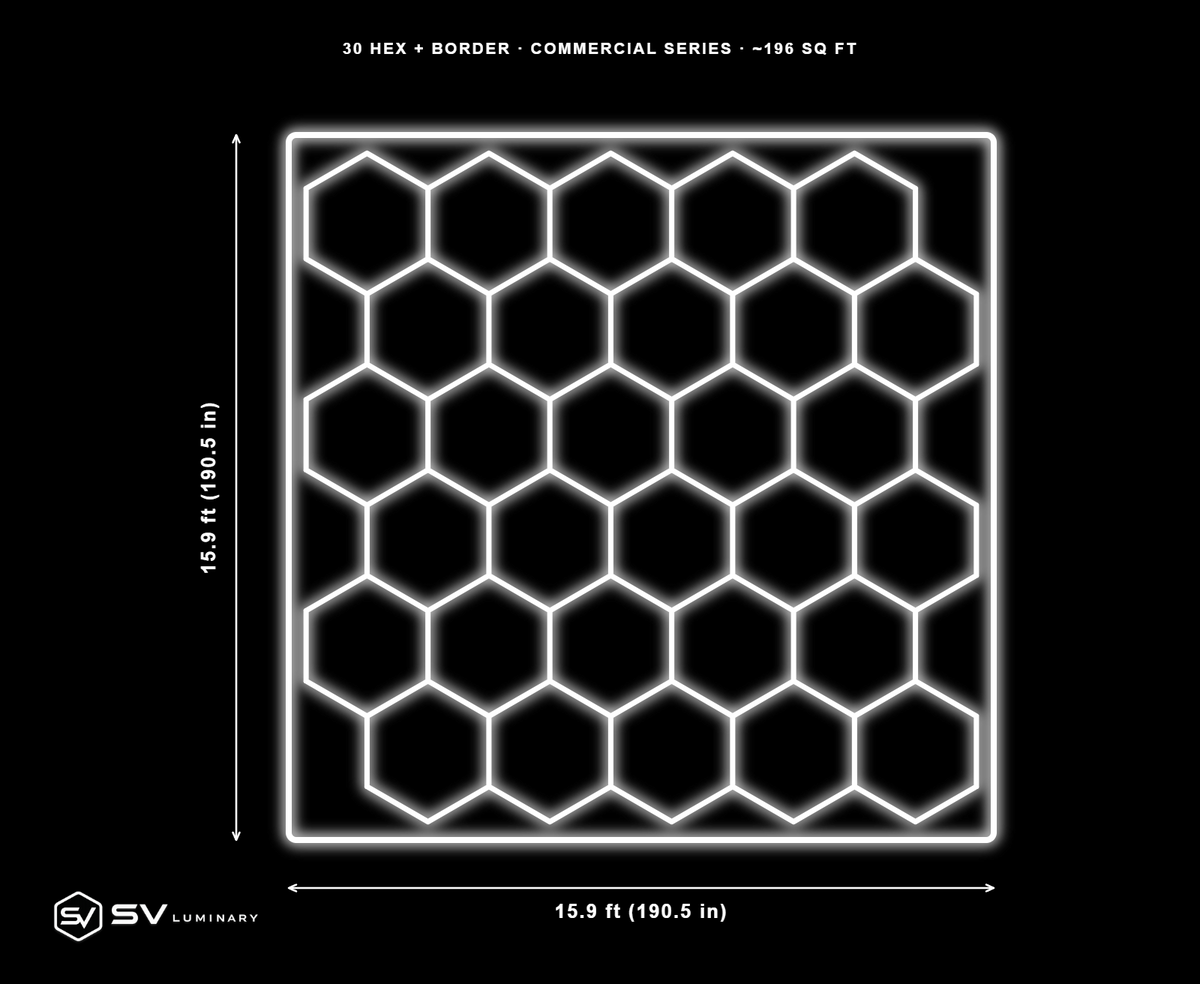

109 LED hex tubes plus 16 border rails (pre-configured 30-panel framed layout)
Full connector set: 120° Y, 2-way, 3-way T, and corner connectors
Power cables (3 feeds), zip ties, and mounting anchors
Spare parts kit
Suspended Installation
Add our Adjustable Coated Cables ($69.99) to float the grid off the ceiling, the look that gets photographed.
Commercial space or want it installed? We handle large installs across DFW. Talk to us before you order and we'll scope the job and map the power plan.
