Eighteen panels, framed. This is the kit for the garage that's deeper than it is wide, the same nearly 16-foot span as our 14-panel flagship, plus a fourth row that pushes coverage past nine feet and wraps it all in the border trim that makes an installation look commissioned.
Want brightness control? The dimmable version adds three brightness steps, 100%, 60% and 30%, cycled from the wall switch you already have, for about $100 more.
At This Scale, Build Quality Isn't Optional
Aluminum frames throughout, including the border. No sag, no warp, ever.
Copper wiring, 3-pin locking connectors at every joint. More current capacity, no failure points working loose.
Fire-resistant connectors, all of them.
Spare parts included + stocked in-house. For a build this size, that matters.
2-year warranty from a DFW business you can reach.
Specs
Panel count
18 hexagon panels (5-4-5-4) with border frame

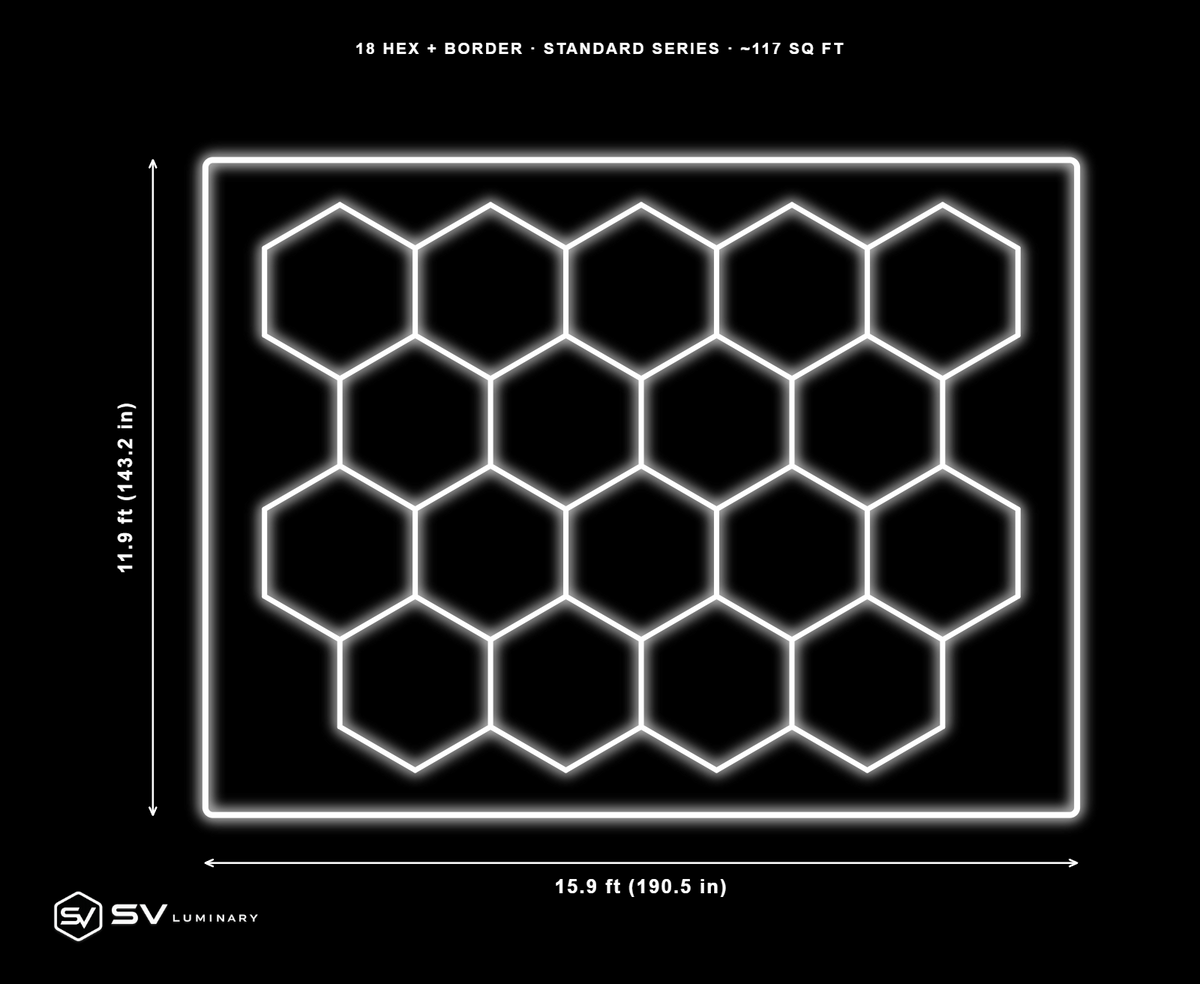

Assembled size
15'11" W × 11'11" H (190.53" × 143.15")
Lit area
117 sq ft of lit hexagon
Brightness
~72,000 lumens · 6500K daylight white · CRI ≥90
Frames
Aluminum, no sag, no warp
Wiring
Copper, 3-pin locking connector
Ingress rating
IP54
Dimming
Full brightness, fixed (non-dimmable)
Install options
Flush mount (included) or suspended (cable kit)
Warranty
2 years, spare parts included
Tolerance
Assembled sizes are the finished footprint and are accurate to about 2 in. Tube and rail lengths are fixed, so the overall size lands on set increments rather than any dimension you name.
Power Requirements
Total draw
~644W (~5.9A at 110V)
Power feeds
Ships pre-split across 2 power feeds so no single run is overloaded
Electrical
Have a licensed electrician confirm the circuit you connect to can carry the load shown above.
