Twenty-two panels. This isn't an accent, it's a commitment. The 22-panel kit is for the people who looked at the 14-panel kit and thought bigger. Full garage ceilings, commercial spaces, dedicated home theaters, automotive showrooms, high-end streaming setups. If the room is the statement, this is the kit.
Want brightness control? The dimmable version adds three brightness steps, 100%, 60% and 30%, cycled from the wall switch you already have, for about $100 more.
At This Scale, Build Quality Isn't Optional
A 22-panel installation has a lot of connection points, a lot of frames under load, and a lot of wiring running between panels. This is exactly where the difference between our kit and a budget alternative becomes visible, and expensive to fix.
Aluminum frames throughout. At 22 panels, plastic sag would be catastrophic. Aluminum holds its shape permanently across the entire span.
Copper wiring, 3-pin locking connectors at every joint. More current capacity, more secure connections, no points of failure working loose over time.
Fire-resistant connectors, all of them. Not a sample. Every connection in the kit.
Spare parts included + fully stocked in-house. For an installation this size, that matters.
2-year warranty. We're a DFW business. We're reachable. We stand behind this.
Specs
Panel count

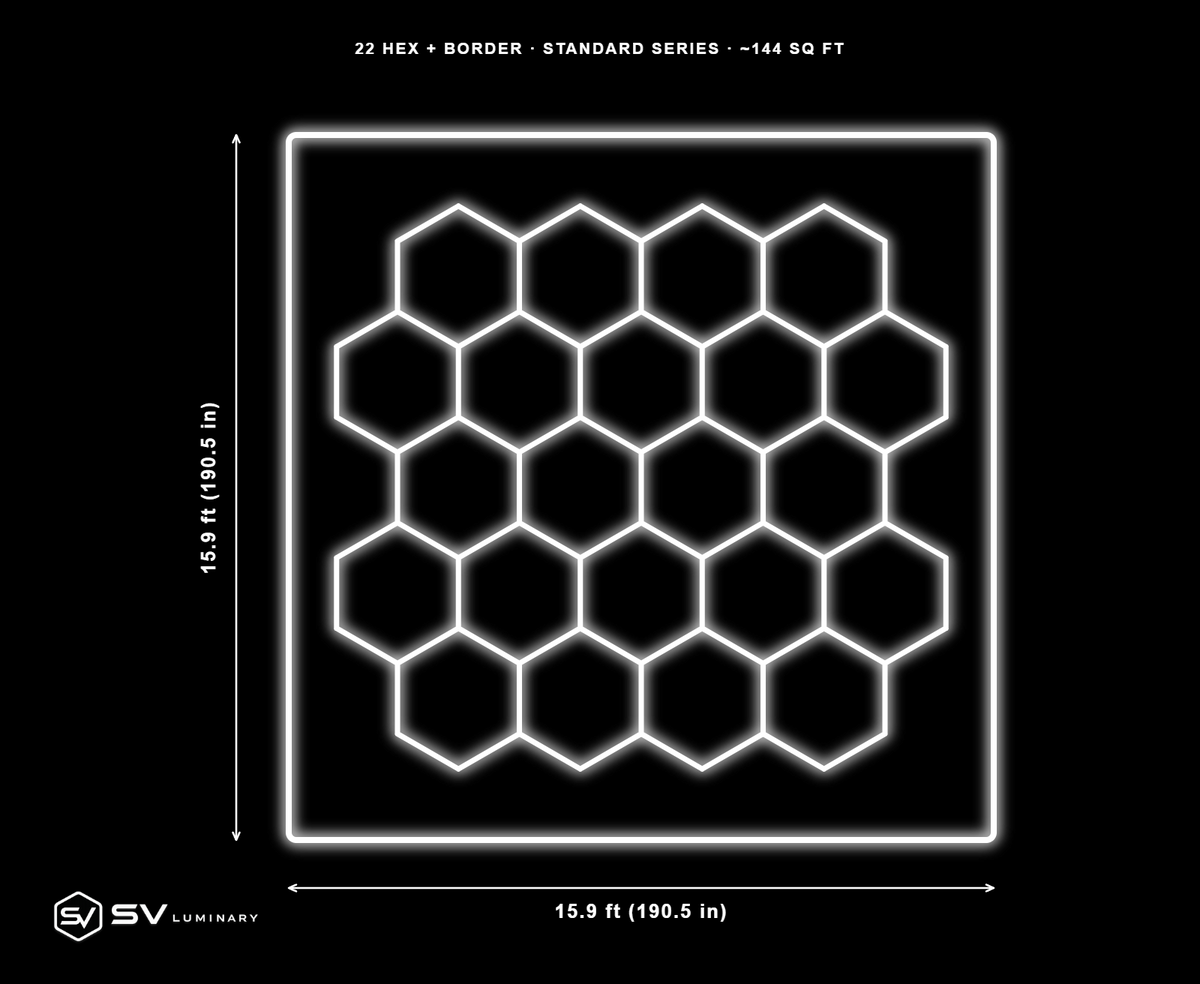

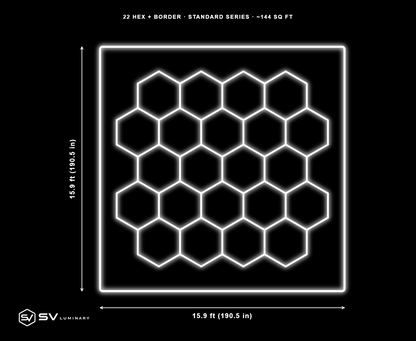

22 hexagon panels (4-5-4-5-4) with border frame
Assembled size
15'11" W × 15'11" H (190.53" × 190.53")
Lit area
144 sq ft of lit hexagon
Brightness
~83,000 lumens · 6500K daylight white · CRI ≥90
Frames
Aluminum, no sag, no warp at any scale
Wiring
Copper, 3-pin locking connectors throughout
Ingress rating
IP54
Dimming
Full brightness, fixed (non-dimmable)
Install options
Flush mount (included) or suspended (cable kit separate)
Warranty
2 years, spare parts included
Tolerance
Assembled sizes are the finished footprint and are accurate to about 2 in. Tube and rail lengths are fixed, so the overall size lands on set increments rather than any dimension you name.
Power Requirements
Total draw
~754W (~6.9A at 110V)
Power feeds
Ships pre-split across 2 power feeds so no single run is overloaded
Electrical
Have a licensed electrician confirm the circuit you connect to can carry the load shown above.
All connectors: 120° Y, 2-way, 3-way T, and corners
Power cables, zip ties, and mounting anchors
Spare parts kit
Suspended Installation
For a 22-panel floating install, add our Adjustable Coated Cables ($69.99), 34 rust-resistant coated cables adjustable up to 36". At this panel count, the suspended look is the one that makes visitors ask who designed your space.
