Five panels. Enough to transform a ceiling, small enough to not take over a room. This is the kit for the single-bay garage, the home gym, the office or recording corner that finally looks like it belongs on a professional setup.
It's also the right starting point if you've been watching garage builds online and want to see how the kit installs before committing to a full ceiling. An easy way to see the quality up close first.
Not All Hex Kits Are the Same
Aluminum frames. The cheap import kits use plastic. Plastic bows, sags, and discolors. Aluminum doesn't.
Copper wiring, 3-pin connectors. More conductive than the aluminum wiring in budget kits. Locks in place, doesn't vibrate loose.
Fire-resistant connectors. On every SV kit, no exceptions.
Spare parts included. You won't need them, but they're there.
2-year warranty. Real support from a real DFW business.
Specs
Panel count

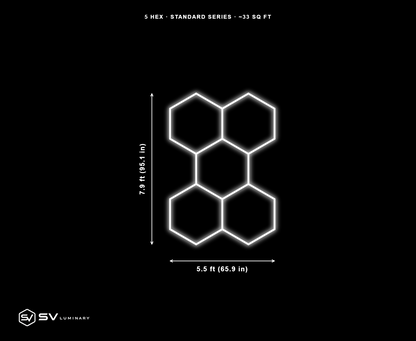

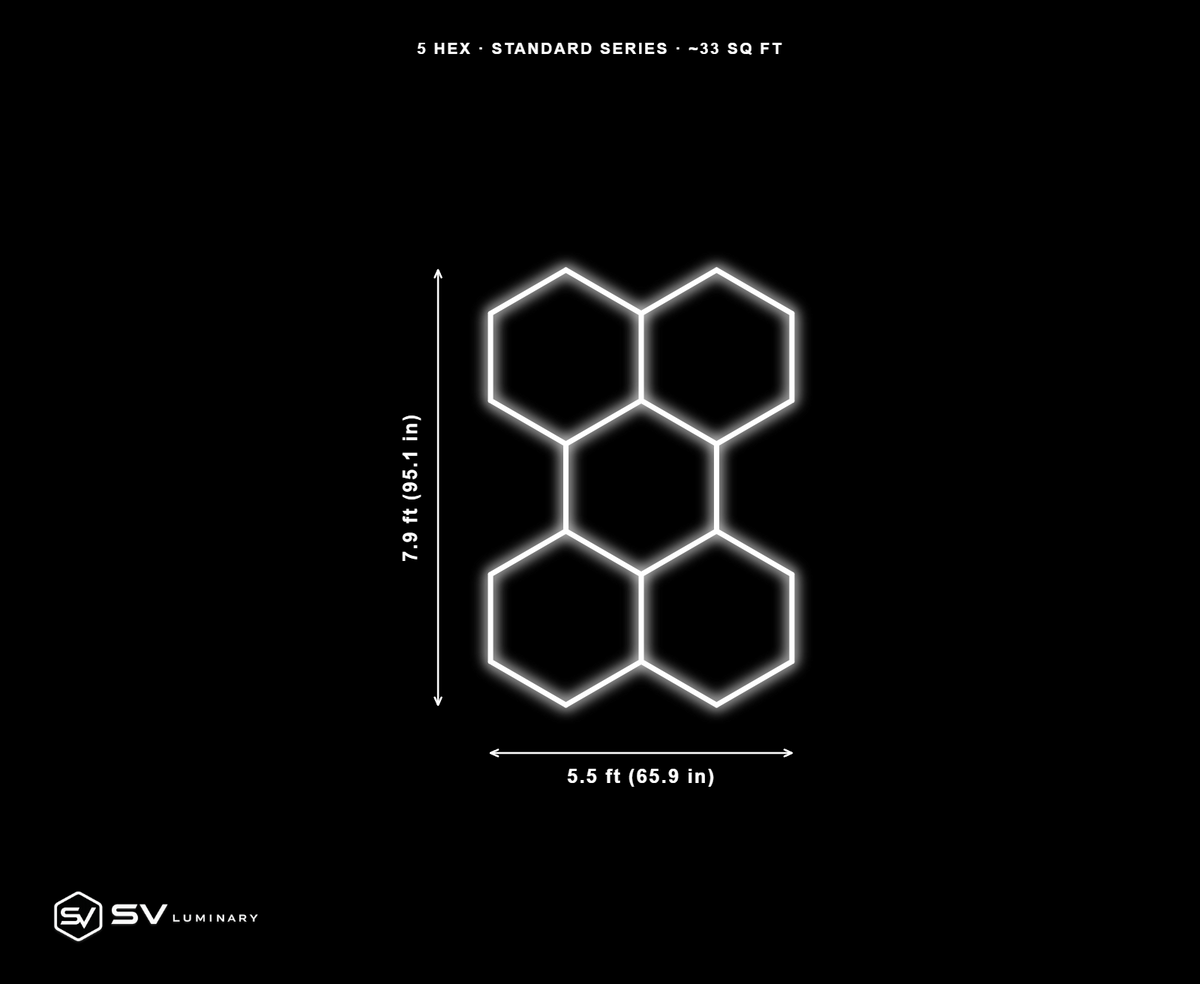

5 hexagon panels (2-1-2 layout)
Assembled size
5'6" W × 7'11" H (65.87" × 95.08")
Lit area
33 sq ft of lit hexagon
Brightness
~16,500 lumens · 6500K daylight white · CRI ≥90
Frames
Aluminum
Wiring
Copper, 3-pin connector
Ingress rating
IP54
Dimming
Full brightness, fixed (non-dimmable)
Install options
Flush mount (included) or suspended (cable kit)
Warranty
2 years, spare parts included
Tolerance
Assembled sizes are the finished footprint and are accurate to about 2 in. Tube and rail lengths are fixed, so the overall size lands on set increments rather than any dimension you name.
Power Requirements
Total draw
~144W (~1.3A at 110V)
Electrical
Have a licensed electrician confirm the circuit you connect to can carry the load shown above.
What's in the Box
24 LED hex tubes (pre-configured 5-panel layout)
All connectors: 120° Y, 2-way, and 3-way T
Power cable, zip ties, and mounting anchors
Spare parts
Want Them Floating Instead of Flush?
Add our Adjustable Coated Cables ($69.99), 34 rust-resistant cables, adjustable up to 35". Gives the panels a layered, suspended look instead of sitting flat against the ceiling. A different aesthetic at a small cost increase.
