Eleven panels is where a hex installation stops being a decoration and starts being a feature. Enough panels to light a full garage bay, anchor a home gym ceiling, or turn a recording setup from forgettable to memorable. Not so many that it overwhelms a room.
Want brightness control? The dimmable version adds three brightness steps, 100%, 60% and 30%, cycled from the wall switch you already have, for about $100 more.
Measure your bay and odds are this is the size that fits. Big enough to matter, dialed in enough not to crowd.
Build Quality That Shows
Aluminum frames. Every bargain kit uses plastic. You'll see the difference in a year when theirs starts to sag and yours still looks like day one.
Copper wiring, 3-pin locking connectors. More conductive, more secure. Stays connected, period.
Fire-resistant connectors. Included on every kit we sell.
Spare parts in the box + stocked in-house. We're a real business, not a dropshipper. We've got your parts.
2-year warranty. Backed by a DFW team with a phone number.
Specs
Panel count

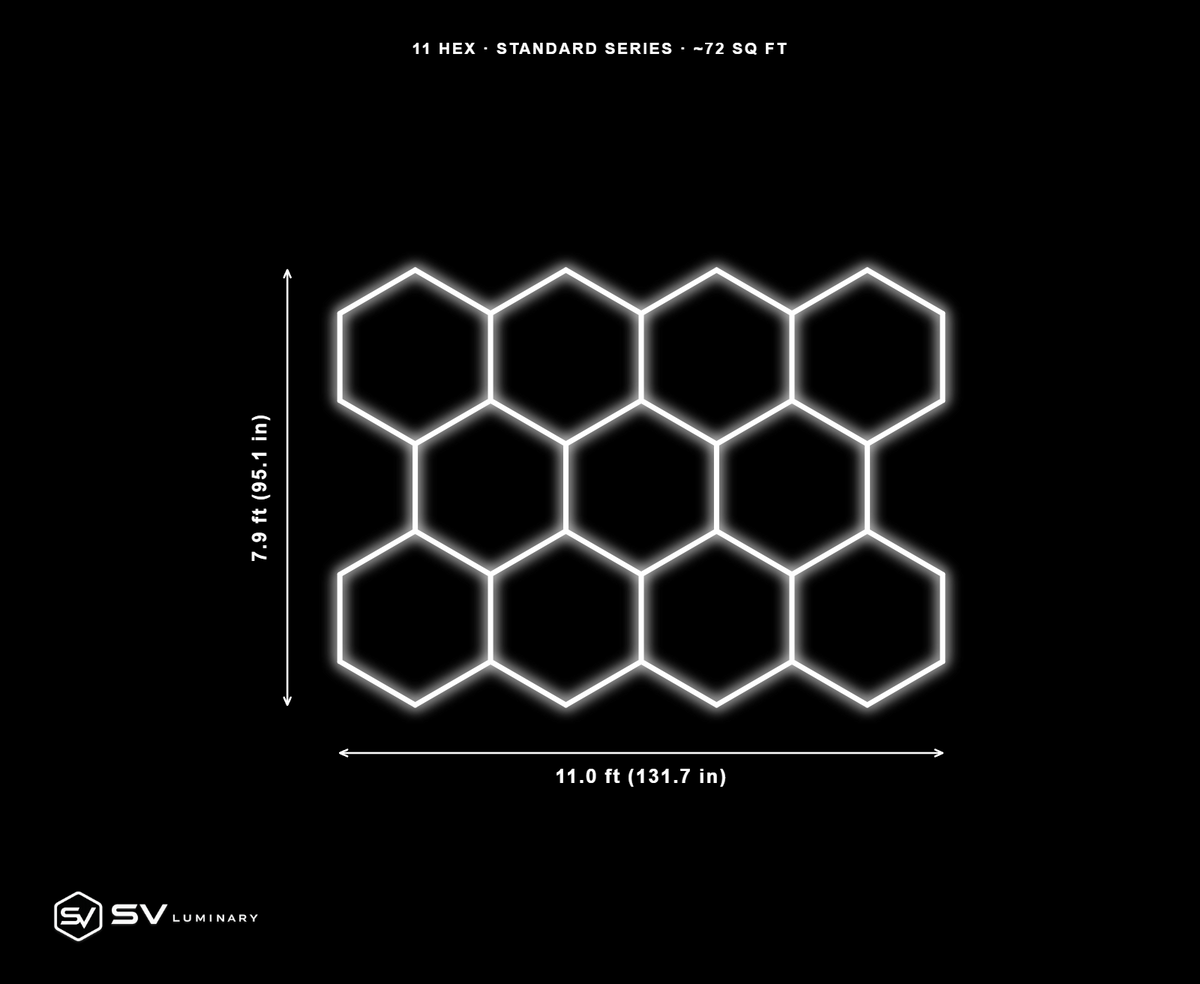

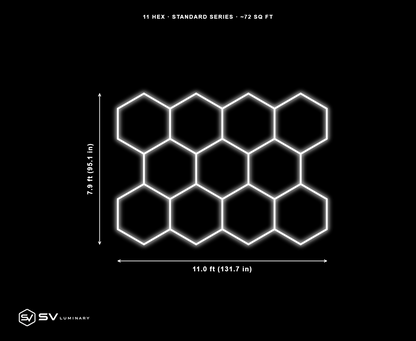

11 hexagon panels (4-3-4 layout)
Assembled size
11'0" W × 7'11" H (131.74" × 95.08")
Lit area
72 sq ft of lit hexagon
Brightness
~31,500 lumens · 6500K daylight white · CRI ≥90
Frames
Aluminum, no sag, no warp
Wiring
Copper, 3-pin locking connector
Ingress rating
IP54
Dimming
Full brightness, fixed (non-dimmable)
Install options
Flush mount (included) or suspended (cable kit)
Warranty
2 years, spare parts included
Tolerance
Assembled sizes are the finished footprint and are accurate to about 2 in. Tube and rail lengths are fixed, so the overall size lands on set increments rather than any dimension you name.
Power Requirements
Total draw
~276W (~2.5A at 110V)
Electrical
Have a licensed electrician confirm the circuit you connect to can carry the load shown above.
What's in the Box

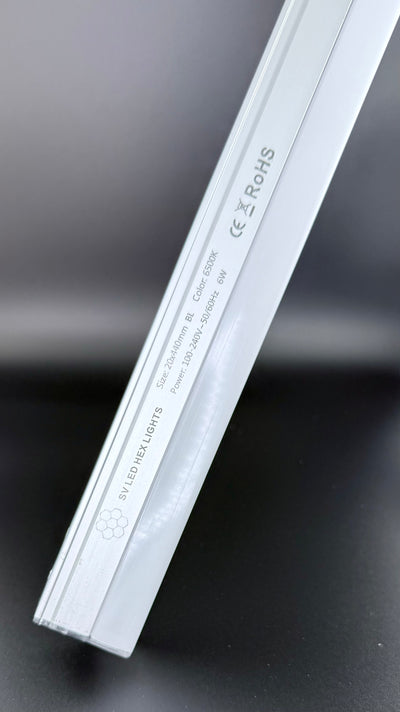

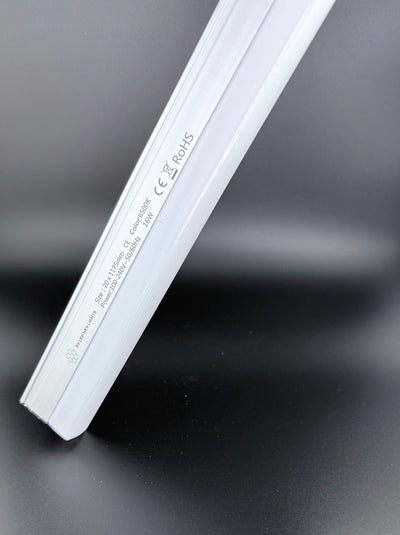

46 LED hex tubes (pre-configured 11-panel layout)

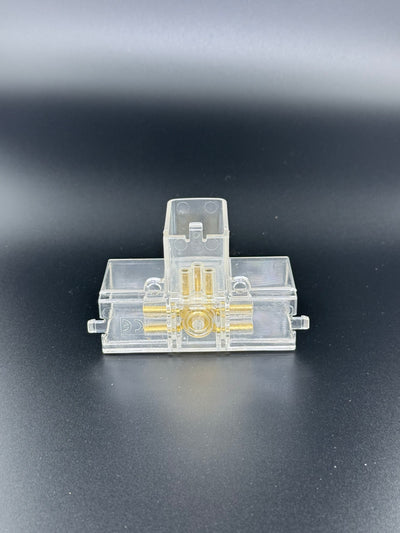

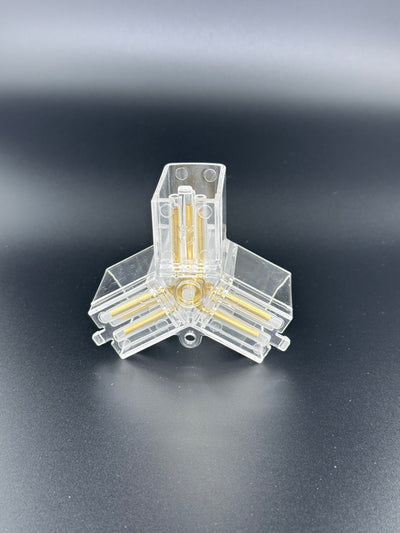

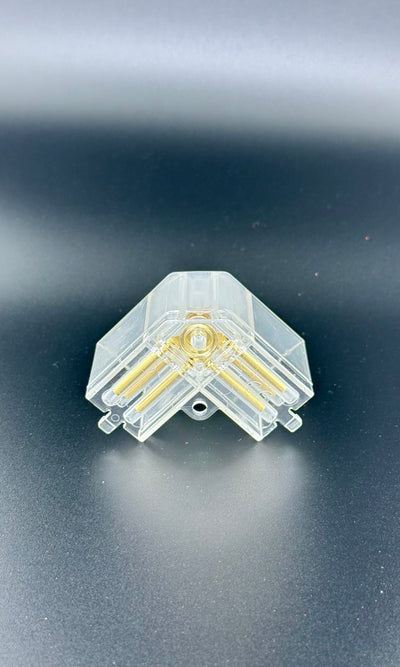

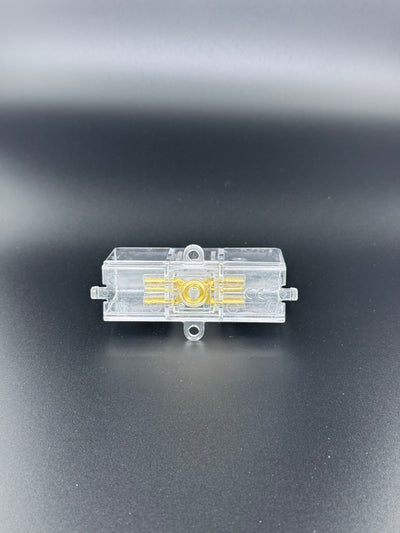

All connectors: 120° Y, 2-way, and 3-way T

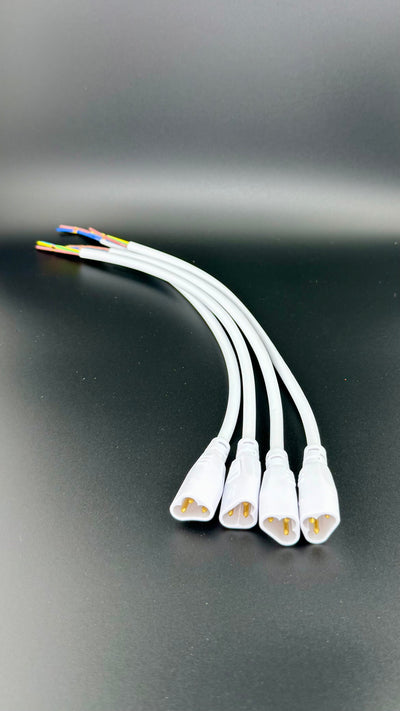

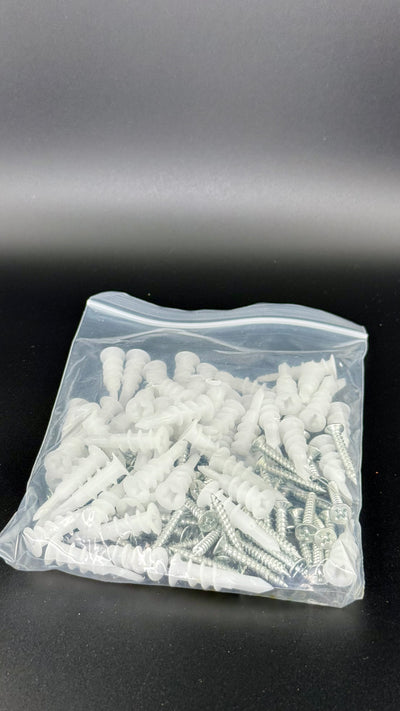

Power cables, zip ties, and mounting anchors
Spare parts kit
Add the Suspended Cable Look
Our Adjustable Coated Cables ($69.99) let you float the panels off the ceiling, 34 rust-resistant cables, adjustable up to 36". The upgrade that makes the biggest visual difference.
Want a more finished edge? See the 11-panel W/Border version, same kit with a perimeter trim that gives the arrangement a clean, framed look.
