A full-color RGBW hexagon field floating inside a clean white rail frame. The frame stays white and steady; the hexes inside run color, scenes and effects from your phone, and a dedicated white channel gives you plain working light from the same tubes. Nothing else in the catalog does both at once.
Built for a long, shallow run: a covered patio, a bar back, a single deep bay, a showroom wall. It is just under 20 ft wide and only 6 ft 4 in deep, so it fits where a square grid will not.
What Makes This One Different
Two lighting systems, one piece. White rails hold the shape and give you steady, usable light. The RGBW field inside does color, scenes and effects, and carries its own white channel.
The frame is rails and hex tubes, not a color perimeter. That is deliberate. Every piece in it is a stocked part, so a damaged tube or rail is swapped from inventory instead of the whole run being rebuilt.
BanlanX app and 2.4G RF remote on the color side, with color modes and effects.
Runs on two SP648E controllers. Both need pairing and grouping in the app or the two halves of the field run scenes out of step. Said plainly here rather than found out later.
Specs
Panel count
11 RGBW hexagon panels inside a white rail frame
Assembled size

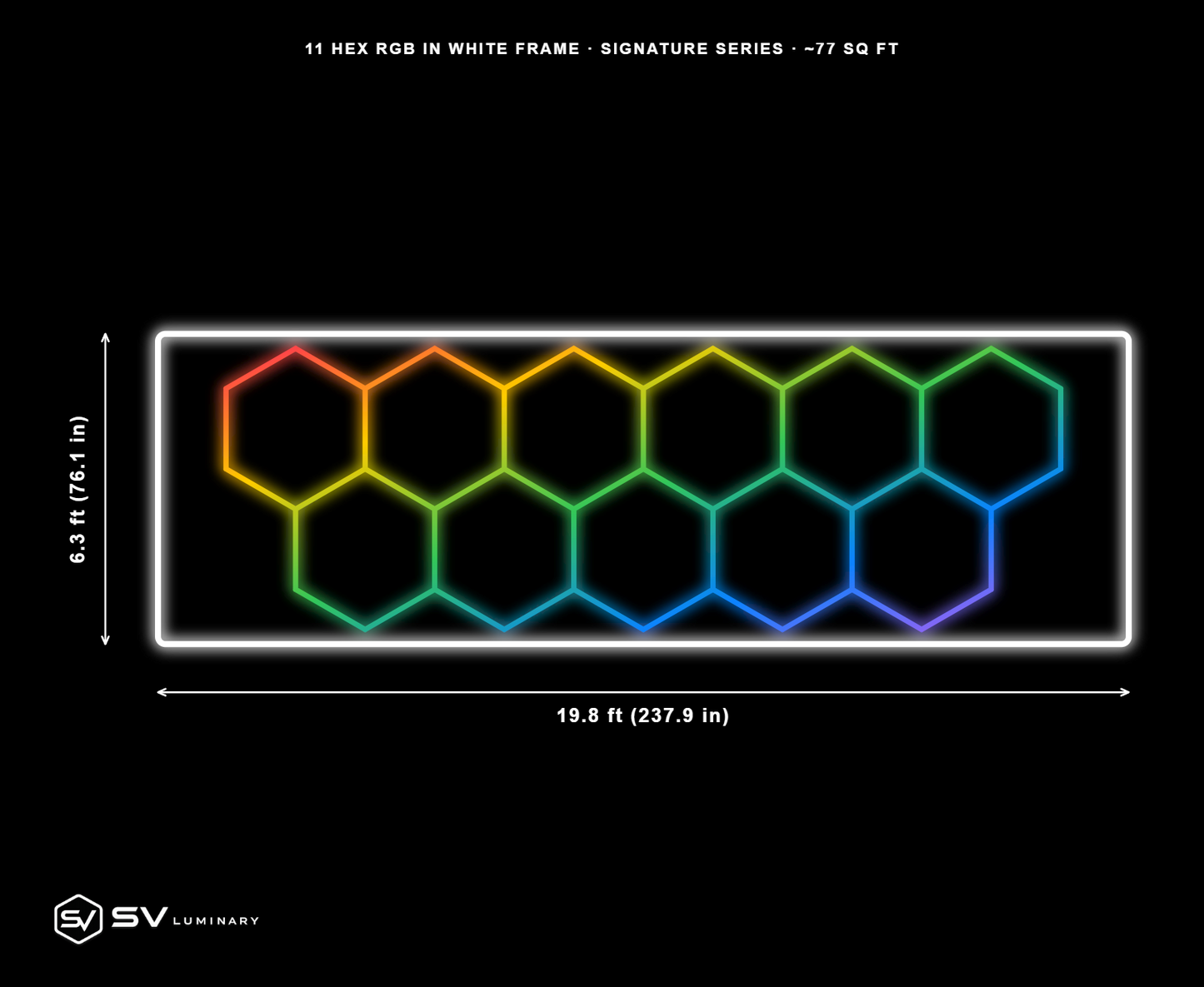

19'10" W × 6'4" H (237.91" × 76.06")
Lit area
77 sq ft of lit hexagon
RGBW field
17'1" × 5'9" (204.57" × 68.90"), 47 tubes, 16.7 in clear at each end and 3.6 in top and bottom
Frame
10 white border rails and 8 white hex tubes, 18 pieces, aluminum
Wiring
Copper, 3-pin locking connector
Ingress rating
IP54
Color
RGBW, addressable color plus a dedicated white channel
Control
BanlanX app and 2.4G RF remote, color and effect modes, two SP648E controllers
Dimming
App controlled brightness and color on the RGBW field
Install options
Flush mount (included) or suspended (cable kit)
Warranty
2 years, spare parts included
Tolerance
Assembled sizes are the finished footprint and are accurate to about 2 in. Tube and rail lengths are fixed, so the overall size lands on set increments rather than any dimension you name.
Power Requirements
Total draw
~85W on the RGBW field at DC 12V, plus ~160W on the white frame at 110V
Power feeds
Two 60W adapters and two SP648E controllers on the color side, one feed on the white frame
Electrical
Have a licensed electrician confirm the circuit you connect to can carry the load shown above.
What's in the Box
47 RGBW hex tubes for the field, plus 10 white border rails and 8 white hex tubes for the frame
Two 60W adapters and two SP648E controllers with the BanlanX app and 2.4G RF remote
All connectors: 120° and Y on the RGBW field, 90° corner, T and 180° in-line on the white frame
Power cables, zip ties, and mounting anchors for flush install
Spare parts kit
Add the Suspended Look
Our Adjustable Coated Cables ($69.99) drop the whole piece off the ceiling on rust-resistant coated cable, adjustable up to 35". Worth it on a patio or an open ceiling where a flush mount has nothing clean to sit against.
Not quite your dimensions?Send us your space and we will map a layout to it for free before you buy.
