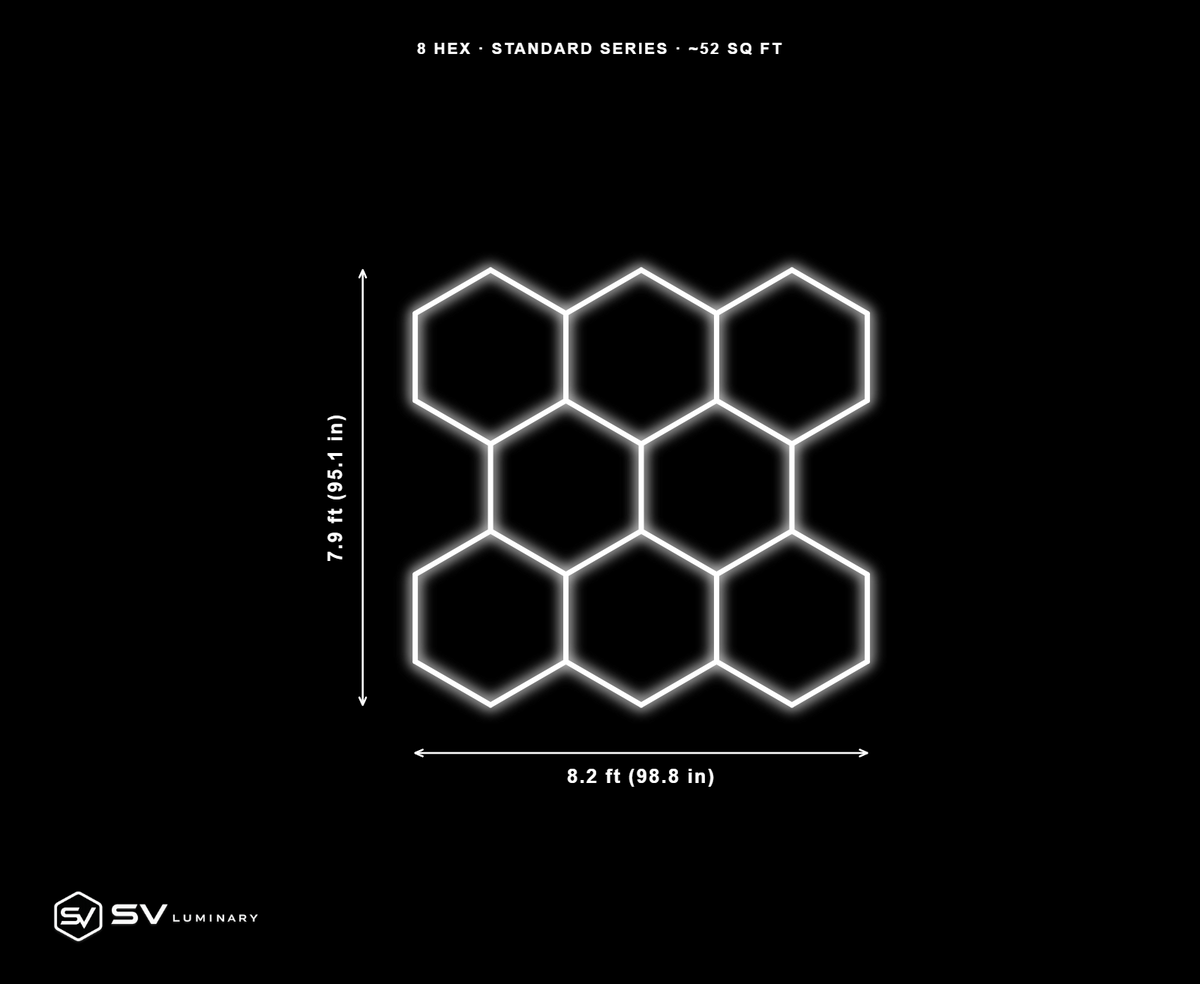

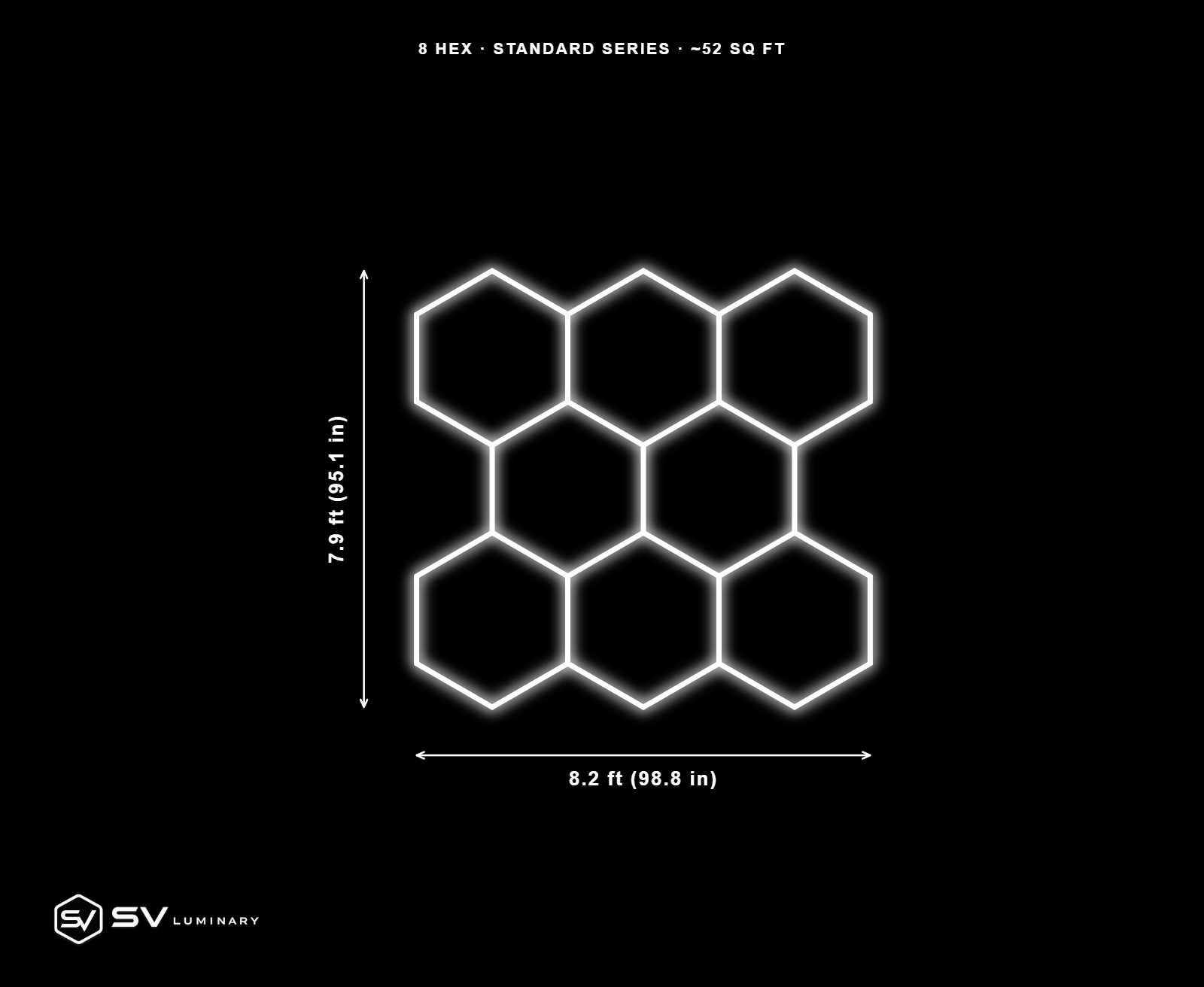

• 8 Panel hexagon LED kit, 8.2 ft by 7.9 ft, 35 hex tubes
1 1

SV Luminary

Hexagon LED Garage Lighting Kit - 8 Panel (Non-Dimmable)

Hexagon LED Garage Lighting Kit - 8 Panel (Non-Dimmable)

$289.99 USD
$289.99 USD
Sale Sold out
Shipping calculated at checkout.

Free shipping (lower 48) · Ships in 1–3 business days from DFW

Package

Eight panels in a 3-2-3 honeycomb, the step between our starter kit and the full-bay 11. Right-sized for a deep single bay, a two-station gym wall of ceiling, or a studio that needs serious light without committing to a full grid.

Why SV Over Every Other Hex Kit

  • Aluminum frames. No plastic, no sag, no warp, permanently.
  • Copper wiring, 3-pin locking connectors. More conductive, locks in place, never works loose.
  • Fire-resistant connectors. Standard on every SV kit.
  • Spare parts included + stocked in-house. Real support from a DFW business.
  • 2-year warranty. We answer the phone.

Specs

Panel count 8 hexagon panels (3-2-3 layout)
Assembled size 8'3" W × 7'11" H (98.81" × 95.08")
Lit area 52 sq ft of lit hexagon
Brightness ~24,000 lumens · 6500K daylight white · CRI ≥90
Frames Aluminum
Wiring Copper, 3-pin locking connector
Ingress rating IP54
Dimming Full brightness, fixed (non-dimmable)
Install options Flush mount (included) or suspended (cable kit)
Warranty 2 years, spare parts included
Tolerance Assembled sizes are the finished footprint and are accurate to about 2 in. Tube and rail lengths are fixed, so the overall size lands on set increments rather than any dimension you name.

Power Requirements

Total draw ~210W (~1.9A at 110V)
Electrical Have a licensed electrician confirm the circuit you connect to can carry the load shown above.

What's in the Box

  • 35 LED hex tubes (pre-configured 8-panel layout)
  • All connectors: 120° Y, 2-way, and 3-way T
  • Power cable, zip ties, and mounting anchors
  • Spare parts kit

Want Them Floating Instead of Flush?

Add our Adjustable Coated Cables ($69.99) for a suspended, layered look.

Compare SV Kits

Kit Panels Assembled size Lit area
5 Panel 5 5'6" × 7'11" 33 sq ft
6 Panel RGB 6 9'11" × 5'9" 42 sq ft
8 Panel 8 8'3" × 7'11" 52 sq ft
11 Panel 11 11'0" × 7'11" 72 sq ft
11 Panel w/Border 11 11'11" × 8'0" 72 sq ft
Diamond Compact Lattice 11'11" × 8'0" See listing
14 Panel w/Border 14 15'11" × 8'0" 91 sq ft
Diamond w/Border Lattice 15'11" × 8'0" See listing
18 Panel w/Border 18 15'11" × 11'11" 117 sq ft
Diamond XL Lattice 15'11" × 11'11" See listing
22 Panel w/Border 22 15'11" × 15'11" 144 sq ft
30 Panel Commercial 30 15'11" × 15'11" 196 sq ft
11 Panel RGB Framed 11 19'10" × 6'4" 77 sq ft

Sizes are finished footprints at the measured hex pitch. Lit area is the lit hexagon area inside that footprint.

View full details
Secure Checkout 256-bit SSL encryption
Real Support Talk to a real person
Free Shipping Contiguous US orders
30-Day Returns Hassle-free return policy
2-Year Warranty Covered against defects
Local DFW Business Dallas-Fort Worth, TX
