The hex panels you know, in full color. This is the current RGBW model: addressable color that moves across the hexes instead of the whole wall switching at once, plus a dedicated white channel so the same fixture is your everyday working light. Gradients, chases and color trails run panel to panel. Static color, color cycling, music-reactive and build-your-own effects, all from the app or the remote.
Same build standard as all our white-light kits. You are not trading away white light to get color.
What's New in the Current Model
RGBW, not basic RGB. Addressable color travels across the panels instead of every tube showing one color at a time, and a separate white channel covers everyday lighting.
SP648E controller. Dynamic effects with adjustable speed, direction and pixel count, solid color, music mode and a DIY mode for building your own.
Two ways to control it. 2.4G RF remote and the BanlanX phone app both included, plus on/off timers.
If you are adding to an existing SV RGB install, contact us first and we will make sure the new kit matches what you already have.
When RGB Is the Right Call
If your space runs at one color, one brightness, one vibe, the white non-dimmable or dimmable kits are the cleaner choice and slightly lower cost. The RGB kit earns its price if you actually want to change colors: gaming rooms, streaming setups, home theaters, event spaces, barbershops, automotive garages that double as entertainment spaces. Anywhere the mood is supposed to shift with the activity.
Specs
Panel count

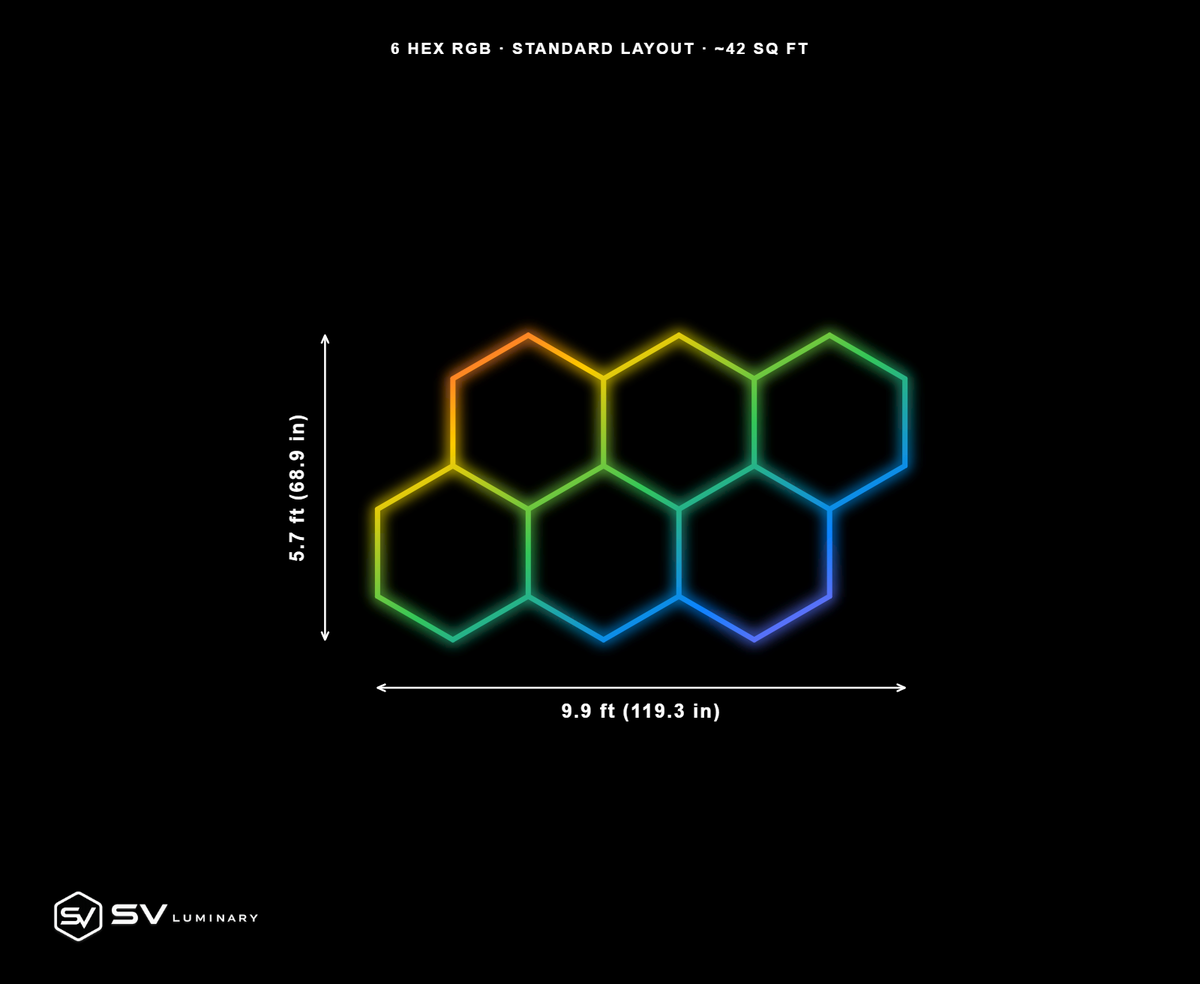

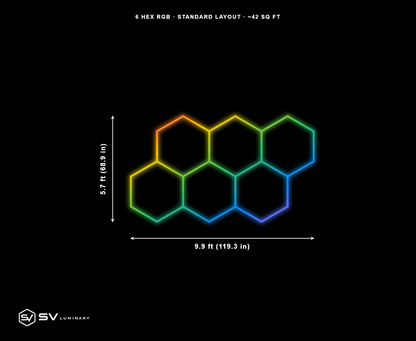

6 hexagon panels (3-1-2 layout)
Assembled size
9'11" W × 5'9" H (119.33" × 68.90")
Lit area
42 sq ft of lit hexagon
Frames
Aluminum
Wiring
Copper, 3-pin locking connector
Ingress rating
IP54
Color
RGBW, addressable color plus a dedicated white channel
Controller
SP648E addressable controller with BanlanX app, current model
Control
2.4G RF remote and BanlanX phone app. Dynamic, solid, music and DIY modes, plus timers
Dimming
App and remote controlled brightness and color
Install options
Flush mount (included) or suspended (cable kit)
Warranty
2 years, spare parts included
Tolerance
Assembled sizes are the finished footprint and are accurate to about 2 in. Tube and rail lengths are fixed, so the overall size lands on set increments rather than any dimension you name.
Power Requirements
Total draw
55.8W at DC 12V through the supplied adapter
Supply
Adapter plugs into a standard household outlet
Electrical
Have a licensed electrician confirm the circuit you connect to can carry the load shown above.
What's in the Box
~28 RGBW LED tubes (pre-configured 6-panel layout)
All connectors: 120° Y, 2-way, and 3-way T
Power cable with SP648E addressable controller and 2.4G RF remote, zip ties, mounting anchors
Spare parts kit
Add the Floating Install
Our Adjustable Coated Cables ($69.99) give the panels a suspended, floating look instead of flush against the ceiling. 34 rust-resistant cables, adjustable up to 35". RGB panels floating in color is genuinely something people stop and stare at.
