SV Luminary

Hexagon LED Garage Lighting Kit - 14 Panel (Non-Dimmable)

Hexagon LED Garage Lighting Kit - 14 Panel (Non-Dimmable)

Regular price $379.99 USD
Regular price Sale price $379.99 USD
Sale Sold out
Shipping calculated at checkout.

Free shipping (lower 48) · Ships in 1–3 business days from DFW

Package
Quantity

Your garage is probably the most-visited room in the house. Right now it has overhead fluorescents. This kit changes that in an afternoon, 14 aluminum-frame hex panels running full brightness across your garage ceiling, the kind of setup people pull out their phones to photograph when they walk in.

This Isn't the Amazon Version

You've seen cheap hex kits, plastic frames that bow in six months, 2-pin aluminum wire that works loose, and no support after the sale. Here's what you're actually buying when you go SV:

  • Aluminum frames, permanently. No sagging, no warping, no panels slowly pulling away from the ceiling. Aluminum holds its shape at temperature extremes that would ruin plastic.
  • Copper wiring, 3-pin connectors. More conductive than aluminum wiring, and the 3-pin design physically locks, it can't work loose over time the way 2-pin connections do.
  • Fire-resistant connectors. Non-negotiable when you're running electrical overhead.
  • Spare parts in the box, and stocked in-house. If something needs replacing two years from now, we have the part. No hunting Amazon for a close match that isn't.
  • 2-year warranty from a real business you can call. We're in DFW. We answer the phone.

Specs

Panel count 14 hexagon panels with border frame

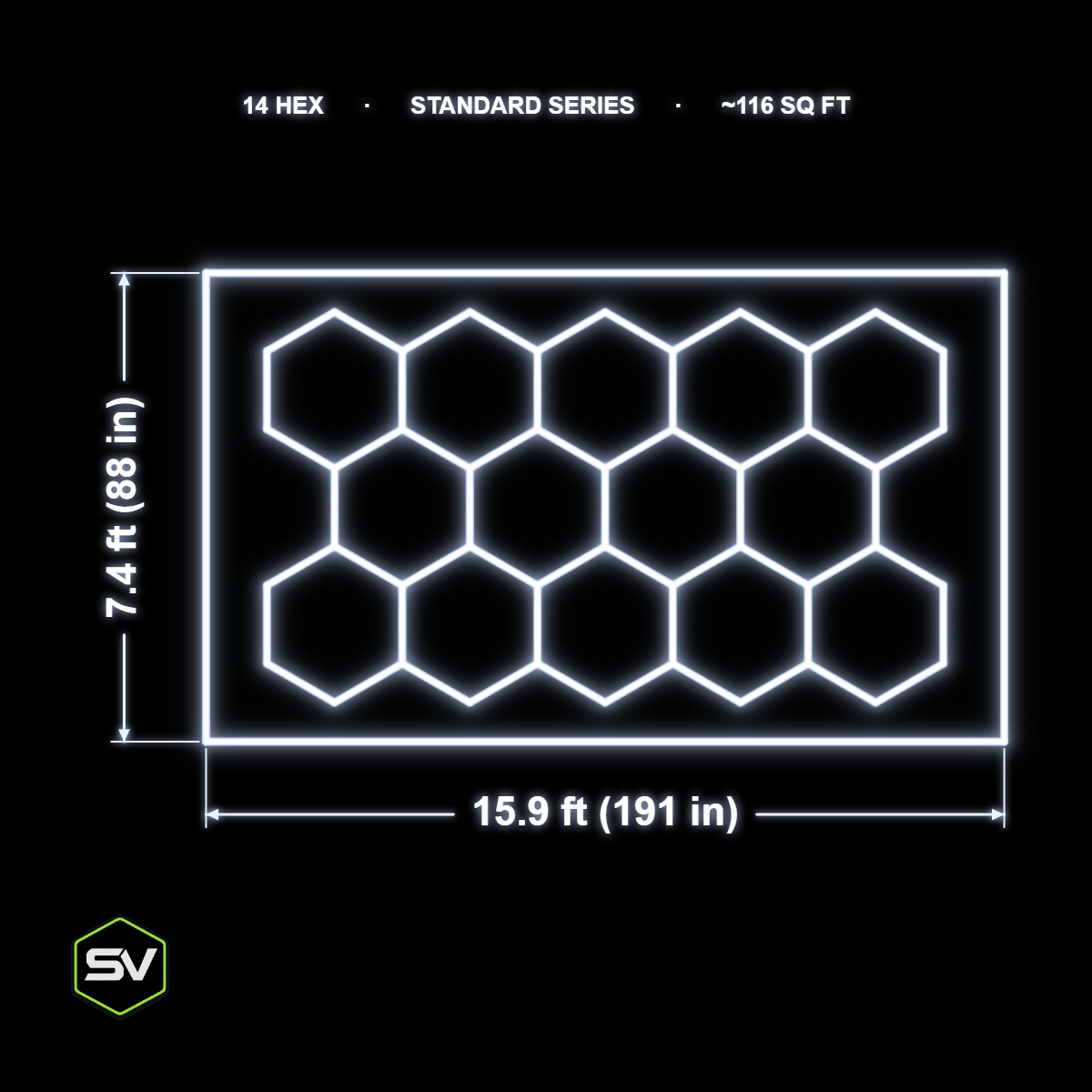

Assembled size 15'10" W × 7'4" H (190.55" × 88.30")
Brightness ~63,500 lumens · 6500K daylight white · CRI ≥90
Electrical AC110V · 552W · 5A
Frames Aluminum, no sag, no warp
Wiring Copper, 3-pin locking connector
Dimming Full brightness, fixed (non-dimmable)
Install options Flush mount (included) or suspended (cable kit)
Warranty 2 years, spare parts included

What's in the Box

  • 57 LED hex tubes + 12 border rails (pre-configured 14-panel layout)
  • All connectors: 120° Y, 2-way, 3-way T, and corner connectors
  • Power cables, zip ties, and mounting anchors for flush install
  • Spare parts kit

Two Ways to Install, One Upgrade Worth Taking

Only Light, $379.99
Panels sit flush against the ceiling. Clean, tight, no gaps. Takes a few hours to mount and looks sharp immediately. This is the right call for most garages.

Light + Cable Installation Kit, $429.99
34 rust-resistant coated cables, each adjustable up to 36", suspend the panels off the ceiling for a floating, layered look. This is what you see in the highest-end garage builds and recording studios. For $50 more, it adds depth that makes the installation look twice as expensive.

Compare SV Kits

Kit Panels Assembled size Brightness
5 Panel 5 5'2" × 6'9" ~16,500 lm
6 Panel RGB 6 8'0" × 6'9" Full RGB
8 Panel 8 8'0" × 6'9" ~24,000 lm
11 Panel 11 10'9" × 6'9" ~31,500 lm
11 Panel w/Border 11 13'1" × 7'4" ~50,000 lm
Diamond Compact Lattice 13'1" × 7'4" ~50,000 lm
14 Panel / Dimmable 14 15'10" × 7'4" ~63,500 lm
Diamond w/Border Lattice 15'10" × 7'4" ~63,500 lm
18 Panel w/Border 18 15'10" × 9'5" ~72,000 lm
Diamond XL Lattice 15'10" × 11'5" ~86,000 lm
22 Panel w/Border 22 15'10" × 11'5" ~83,000 lm

Assembled sizes are approximate (±2"). Every kit ships with connectors, power cables, zip ties, and spares. Not sure which fits? Send us your dimensions, free layout design in 24 hours.

Local to DFW? We install these. Reach out and we'll scope your space.
