Our most popular bay-sized kit, now with three-step brightness control. Same 11-panel hex grid that lights a full garage bay, anchors a home gym, or upgrades a studio, with one addition: three brightness levels, stepped from the wall switch you already have. Bright for working, lower for relaxing, and nothing to rewire to switch between.
Dimming is built into the kit, so there is nothing extra to buy or install. The light comes on at full brightness. Flip the wall switch off and back on within about a second, and it steps down to 60%. Do it again for 30%, and once more to return to full. That is the whole system. Your existing on/off switch is the only control.
Because the dimming is in the tubes, do not put this kit on a dimmer switch. A dimmer will not step the levels and can cause flicker. A plain on/off switch is all it needs. Light color stays 6500K daylight white at every level.
Dimmable vs. Non-Dimmable, Which One?
If the space serves one purpose at one light level, the non-dimmable 11-panel is the clean, reliable choice. If it's a multi-use room (gym and hangout, shop and showroom, studio with mood changes) the three-step version earns its price every week. No dimmer, remote or controller is required. The switch already on the wall is the only control, and a dimmer must not be used on this circuit.
Build Quality That Shows
-
Aluminum frames. Bargain kits use plastic that sags in a year. Ours hold shape permanently.
-
Copper wiring, 3-pin locking connectors. More conductive, more secure, stays connected.
-
Fire-resistant connectors. Included on every kit.
-
Spare parts in the box and stocked in-house. A real DFW business, not a dropshipper.
-
2-year warranty. Backed by a team with a phone number.
Specs

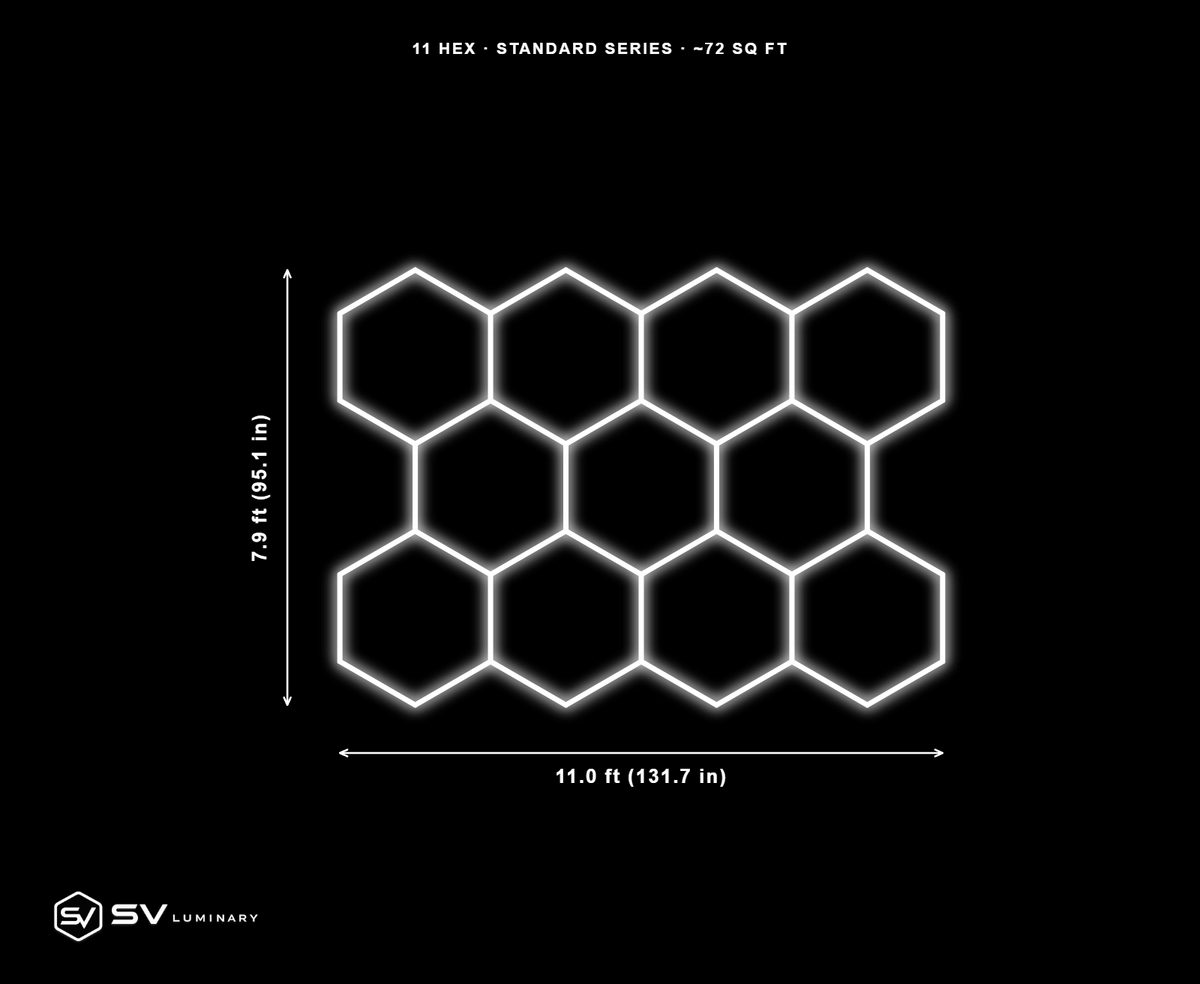

| Panel count |
11 hexagon panels (4-3-4 layout) |
| Assembled size |
11'0" W × 7'11" H (131.74" × 95.08") |
| Lit area |
72 sq ft of lit hexagon |
| Brightness |
~31,500 lumens · 6500K daylight white · CRI ≥90 |
| Frames |
Aluminum, no sag, no warp |
| Wiring |
Copper, 3-pin locking connector |
| Ingress rating |
IP54 |
| Dimming |
3 steps (100% / 60% / 30%) via wall switch cycle, no dimmer required |
| Install options |
Flush mount (included) or suspended (cable kit) |
| Warranty |
2 years, spare parts included |
| Tolerance |
Assembled sizes are the finished footprint and are accurate to about 2 in. Tube and rail lengths are fixed, so the overall size lands on set increments rather than any dimension you name. |
Power Requirements
| Total draw |
~276W (~2.5A at 110V) |
| Electrical |
Have a licensed electrician confirm the circuit you connect to can carry the load shown above. |
What's in the Box
- 46 dimmable LED hex tubes (pre-configured 11-panel layout)
- All connectors: 120° Y, 2-way, and 3-way T
- Power cables, zip ties, and mounting anchors
- Spare parts kit
Add the Suspended Cable Look
Our Adjustable Coated Cables ($69.99) float the panels off the ceiling. 34 rust-resistant cables, adjustable up to 36".
DFW area? We do installations. Get in touch.
Compare SV Kits
Sizes are finished footprints at the measured hex pitch. Lit area is the lit hexagon area inside that footprint.
