Same build as our flagship non-dimmable kit. Same aluminum frames, copper wiring, 3-pin connectors, 2-year warranty. One addition: three brightness levels, stepped from the wall switch you already have. Run them at full for a game, step down to 60% for everyday use, or 30% for a movie or a late night in the shop. That control is worth $100, and if you've ever wished you could adjust the lights, you'll use it constantly.
Dimming is built into the kit, so there is nothing extra to buy or install. The light comes on at full brightness. Flip the wall switch off and back on within about a second, and it steps down to 60%. Do it again for 30%, and once more to return to full. That is the whole system. Your existing on/off switch is the only control.
Because the dimming is in the tubes, do not put this kit on a dimmer switch. A dimmer will not step the levels and can cause flicker. A plain on/off switch is all it needs. Light color stays 6500K daylight white at every level.
Dimmable vs. Non-Dimmable, Which One?
If your space serves one purpose at one light level, the non-dimmable kit is the clean, reliable choice. If you're setting up a multi-use room, game nights, movie nights, content creation, entertaining, the three-step version earns that price difference every week. No rewiring and nothing extra to install, just a quick flip of the switch you already have.
Why SV Over Every Other Hex Kit
-
Aluminum frames. Budget kits use plastic that bows under heat and weight. Ours hold shape permanently.
-
Copper wiring, 3-pin locking connectors. More conductive, more secure, won't work loose over time.
-
Fire-resistant connectors. Standard on every SV kit.
-
Spare parts included + stocked in-house. We're not a dropshipper. We stock parts because we stand behind the product.
-
2-year warranty. Backed by a DFW team you can actually reach.
Specs
| Panel count |
14 hexagon panels with border frame |

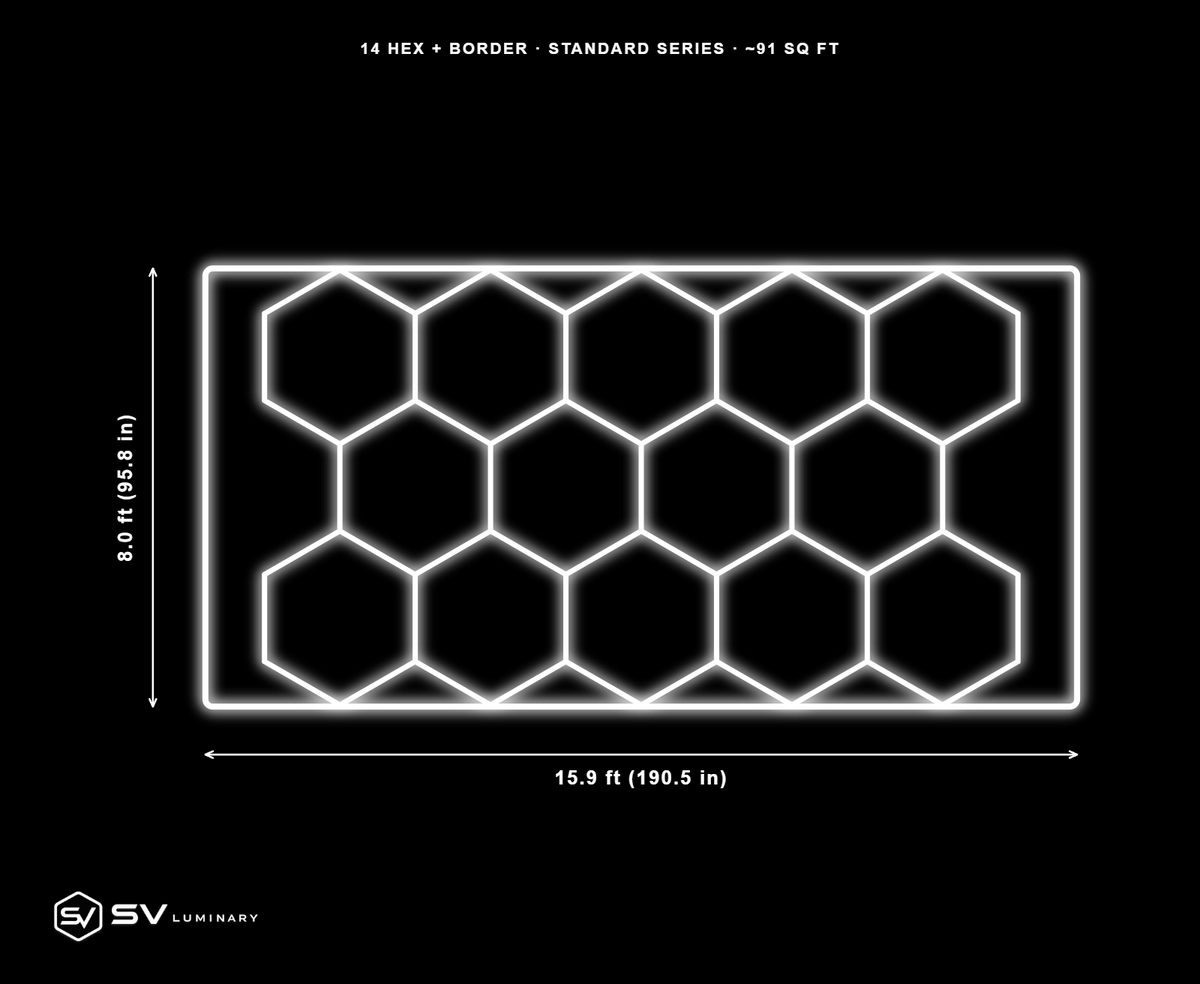

| Assembled size |
15'11" W × 8'0" H (190.53" × 95.78") |
| Lit area |
91 sq ft of lit hexagon |
| Brightness |
~63,500 lumens · 6500K daylight white · CRI ≥90 |
| Frames |
Aluminum, no sag, no warp |
| Wiring |
Copper, 3-pin locking connector |
| Ingress rating |
IP54 |
| Dimming |
3 steps (100% / 60% / 30%) via wall switch cycle, no dimmer required |
| Install options |
Flush mount (included) or suspended (cable kit) |
| Warranty |
2 years, spare parts included |
| Tolerance |
Assembled sizes are the finished footprint and are accurate to about 2 in. Tube and rail lengths are fixed, so the overall size lands on set increments rather than any dimension you name. |
Power Requirements
| Total draw |
~552W (~5.0A at 110V) |
| Electrical |
Have a licensed electrician confirm the circuit you connect to can carry the load shown above. |
What's in the Box
- 57 dimmable LED hex tubes + 12 border rails (pre-configured 14-panel layout)
- All connectors: 120° Y, 2-way, 3-way T, and corner connectors
- Power cables, zip ties, and mounting anchors for flush install
- Spare parts kit
Flush Mount or Suspended
Only Light, $479.99
Everything you need for a flush ceiling mount. Looks clean, installs in hours, lasts years.
Light + Cable Installation Kit, $529.99
34 coated, rust-resistant cables (adjustable to 36") for a floating suspended look. The high-end studio and garage choice.
Compare SV Kits
Sizes are finished footprints at the measured hex pitch. Lit area is the lit hexagon area inside that footprint.
