Eighteen panels, framed, with three-step brightness control. The same deep-coverage framed grid as our 18-panel flagship-width kit, nearly 16 feet wide, pushing past nine feet deep, with three brightness levels stepped from your existing wall switch. Run it bright for work, step it down for everything else.
Dimming is built into the kit, so there is nothing extra to buy or install. The light comes on at full brightness. Flip the wall switch off and back on within about a second, and it steps down to 60%. Do it again for 30%, and once more to return to full. That is the whole system. Your existing on/off switch is the only control.
Because the dimming is in the tubes, do not put this kit on a dimmer switch. A dimmer will not step the levels and can cause flicker. A plain on/off switch is all it needs. Light color stays 6500K daylight white at every level.
Why Add Dimming at This Size
An 18-panel kit puts out serious light (~72,000 lumens). In a multi-use garage, gym, or studio, that's exactly the kind of space where being able to drop to ambient matters. No dimmer, remote or proprietary controller. The wall switch is the only control, and a dimmer must not be installed on the circuit. Prefer a fixed install? The non-dimmable 18-panel is $100 less.
At This Scale, Build Quality Isn't Optional
-
Aluminum frames throughout, including the border. No sag, no warp, ever.
- Copper wiring, 3-pin locking connectors at every joint.
- Fire-resistant connectors, all of them.
- Spare parts included and stocked in-house.
- 2-year warranty from a DFW business you can reach.
Specs
| Panel count |

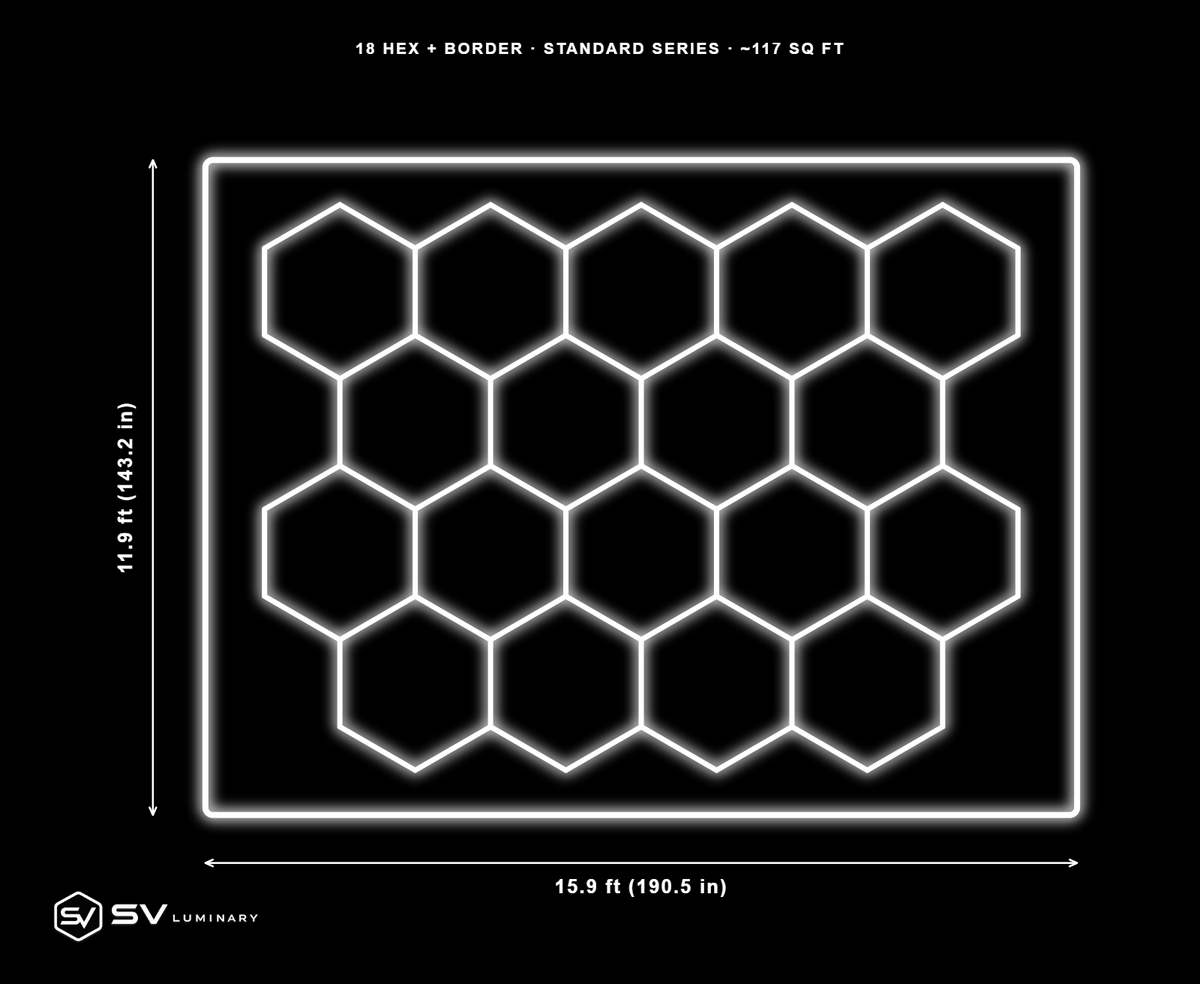

18 hexagon panels (5-4-5-4) with border frame |
| Assembled size |
15'11" W × 11'11" H (190.53" × 143.15") |
| Lit area |
117 sq ft of lit hexagon |
| Brightness |
~72,000 lumens · 6500K daylight white · CRI ≥90 |
| Frames |
Aluminum, no sag, no warp |
| Wiring |
Copper, 3-pin locking connector |
| Ingress rating |
IP54 |
| Dimming |
3 steps (100% / 60% / 30%) via wall switch cycle, no dimmer required |
| Install options |
Flush mount (included) or suspended (cable kit) |
| Warranty |
2 years, spare parts included |
| Tolerance |
Assembled sizes are the finished footprint and are accurate to about 2 in. Tube and rail lengths are fixed, so the overall size lands on set increments rather than any dimension you name. |
Power Requirements
| Total draw |
~644W (~5.9A at 110V) |
| Power feeds |
Ships pre-split across 2 power feeds so no single run is overloaded |
| Electrical |
Have a licensed electrician confirm the circuit you connect to can carry the load shown above. |
What's in the Box
- 70 dimmable LED hex tubes plus 14 border rails (pre-configured 18-panel framed layout)
- All connectors: 120° Y, 2-way, 3-way T, and corners
- Power cables (2 feeds), zip ties, and mounting anchors
- Spare parts kit
Suspended Installation
Add our Adjustable Coated Cables ($69.99) to float the framed grid off the ceiling.
Commercial space or want it installed? We handle large installs across DFW. Talk to us.
Compare SV Kits
Sizes are finished footprints at the measured hex pitch. Lit area is the lit hexagon area inside that footprint.
