Twenty-two panels, framed, with three-step brightness control. Our largest single-grid kit, built for full garage ceilings, showrooms, and dedicated theaters, with three brightness levels stepped from your existing wall switch. Run it at ~83,000 lumens of daylight, or step it back to a low ambient glow using nothing but the switch already on the wall.
Dimming is built into the kit, so there is nothing extra to buy or install. The light comes on at full brightness. Flip the wall switch off and back on within about a second, and it steps down to 60%. Do it again for 30%, and once more to return to full. That is the whole system. Your existing on/off switch is the only control.
Because the dimming is in the tubes, do not put this kit on a dimmer switch. A dimmer will not step the levels and can cause flicker. A plain on/off switch is all it needs. Light color stays 6500K daylight white at every level.
Why Add Dimming on the Big Kit
At 22 panels this is a room-defining install, and the spaces it goes in (home theaters, showrooms, multi-use shops) are exactly the ones where one fixed brightness doesn't fit every moment. No dimmer, remote or proprietary controller is needed, and a dimmer must not be used on this circuit. Want it fixed for less? The non-dimmable 22-panel is $100 below this.
At This Scale, Build Quality Isn't Optional
-
Aluminum frames throughout. At 22 panels, plastic sag would be catastrophic. Aluminum holds shape permanently across the entire span.
- Copper wiring, 3-pin locking connectors at every joint.
- Fire-resistant connectors on every connection in the kit.
- Spare parts included and fully stocked in-house.
-
2-year warranty. A reachable DFW business standing behind it.
Specs
| Panel count |

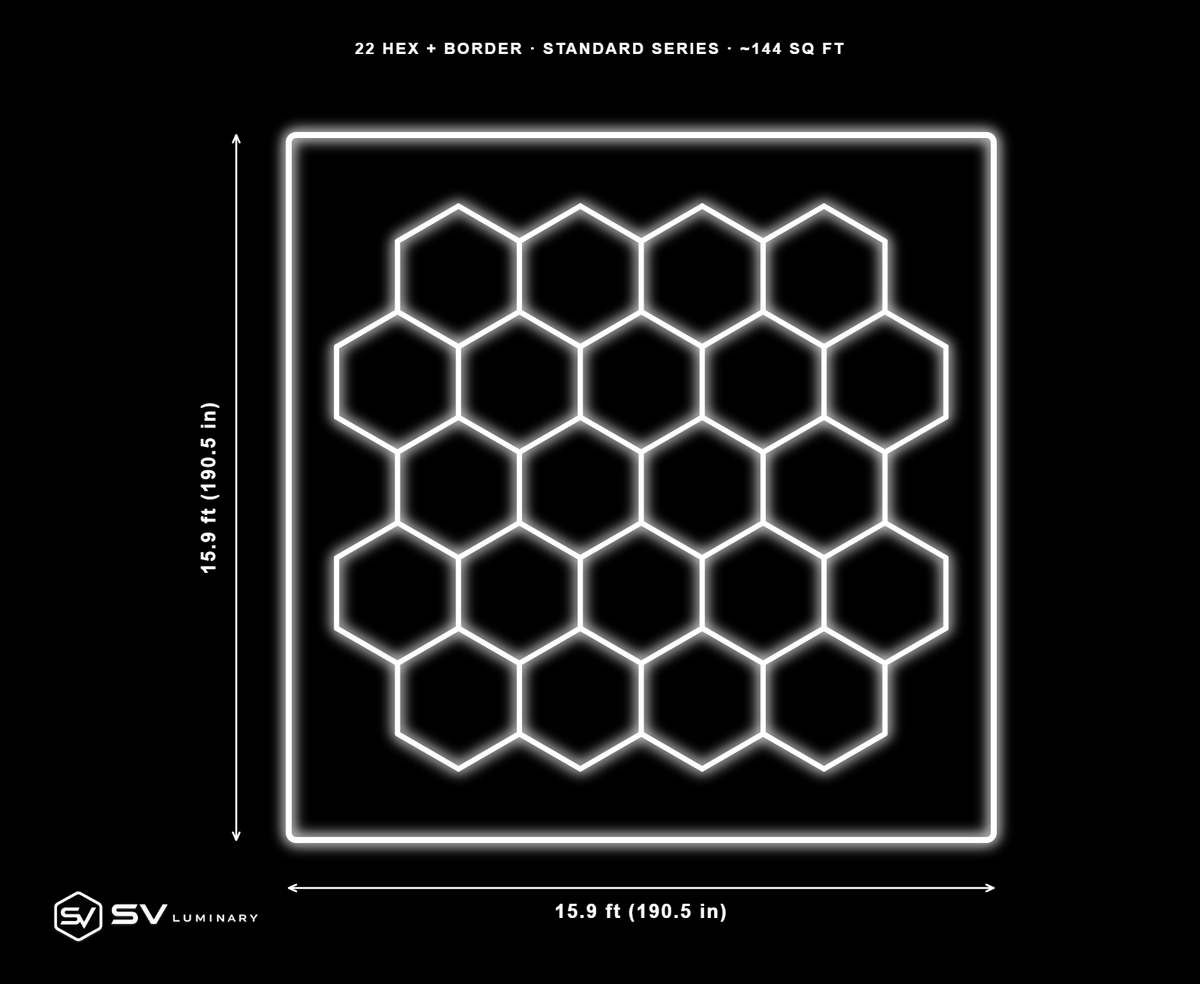

22 hexagon panels (4-5-4-5-4) with border frame |
| Assembled size |
15'11" W × 15'11" H (190.53" × 190.53") |
| Lit area |
144 sq ft of lit hexagon |
| Brightness |
~83,000 lumens · 6500K daylight white · CRI ≥90 |
| Frames |
Aluminum, no sag, no warp at any scale |
| Wiring |
Copper, 3-pin locking connectors throughout |
| Ingress rating |
IP54 |
| Dimming |
3 steps (100% / 60% / 30%) via wall switch cycle, no dimmer required |
| Install options |
Flush mount (included) or suspended (cable kit separate) |
| Warranty |
2 years, spare parts included |
| Tolerance |
Assembled sizes are the finished footprint and are accurate to about 2 in. Tube and rail lengths are fixed, so the overall size lands on set increments rather than any dimension you name. |
Power Requirements
| Total draw |
~754W (~6.9A at 110V) |
| Power feeds |
Ships pre-split across 2 power feeds so no single run is overloaded |
| Electrical |
Have a licensed electrician confirm the circuit you connect to can carry the load shown above. |
What's in the Box
- 83 dimmable LED hex tubes plus 16 border rails (pre-configured 22-panel framed layout)
- All connectors: 120° Y, 2-way, 3-way T, and corners
- Power cables (2 feeds), zip ties, and mounting anchors
- Spare parts kit
Suspended Installation
For a floating install, add our Adjustable Coated Cables ($69.99). 34 rust-resistant coated cables adjustable up to 36".
Commercial install or want it done for you? We handle large-scale installs across DFW. Talk to us before you order.
Compare SV Kits
Sizes are finished footprints at the measured hex pitch. Lit area is the lit hexagon area inside that footprint.
