Hexagon LED Garage Lighting Kit - 3-Car Garage Bundle (3x 14-Panel with Border, Non-Dimmable)

$1,082.97 USD

Sale Sold out

Shipping calculated at checkout.

Free shipping over $50 (lower 48) · Ships to US addresses only · Ships in 2–3 business days from DFW

Title Only Light Light + Installation Cable Kit

Measuring a space? Send us your dimensions — we'll design your hex layout free, with firm pricing in 24 hours →

Light a full three-car garage with three of our flagship 14-panel framed kits, bundled together and discounted 5% off buying them separately. Three matching honeycomb arrays, one per bay, roughly 190,000 lumens of 6500K daylight across the whole space. The proven 14-panel kit, just times three.

Why the Bundle

A three-car garage is really three bays. Rather than one oversized custom array, this bundle gives you three of the exact 14-panel framed kit people already love, so each bay gets its own clean honeycomb. You save 5% versus buying three 14-panel kits on their own, and every kit ships complete with its own frames, connectors, cables, and spares.

The Build, Three Times Over

Aluminum frames throughout, every array, every border. No sag, no warp.
Copper wiring, 3-pin locking connectors at every joint.
Fire-resistant connectors, all of them.
Spare parts included with each kit and stocked in-house.
2-year warranty from a DFW team you can reach.

Specs

Panel count	42 hexagon panels across 3 arrays

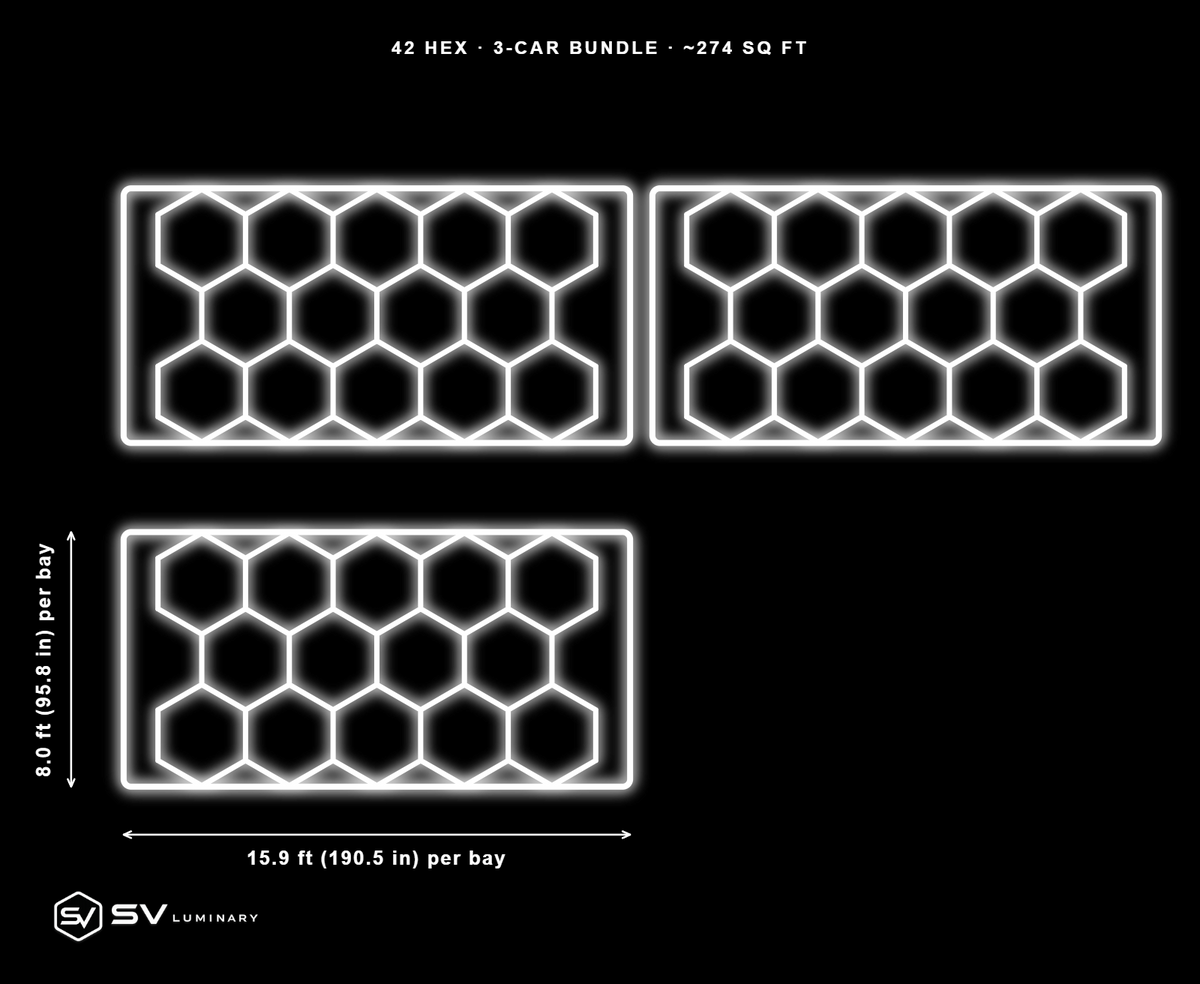

Assembled size	15'11" W × 8'0" H (190.53" × 95.78") per bay
Lit area	274 sq ft of lit hexagon
Brightness	~190,000 lumens total (3 x ~63,500) · 6500K daylight white · CRI ≥90
Frames	Aluminum, no sag, no warp
Wiring	Copper, 3-pin locking connectors
Ingress rating	IP54
Dimming	Full brightness, fixed (non-dimmable)
Install options	Flush mount (included) or suspended (cable kit)
Warranty	2 years, spare parts included
Tolerance	Assembled sizes are the finished footprint and are accurate to about 2 in. Tube and rail lengths are fixed, so the overall size lands on set increments rather than any dimension you name.

Power Requirements

Total draw	~1,656W (~15.1A at 110V)
Power feeds	Ships pre-split across three independent arrays, each on its own feeds so no single run is overloaded
Electrical	Have a licensed electrician confirm the circuit you connect to can carry the load shown above.

What's in the Box

Three complete 14-panel framed kits (each: 57 LED hex tubes plus 12 border rails)
Full connector set for each kit: 120° Y, 2-way, 3-way T, and corners
Power cables, zip ties, and mounting anchors for all three
Spare parts kit with each

Planning a three-car build? Talk to us first. We will confirm your bay dimensions, map the array spacing, and spec the electrical. Reach out. We install these across DFW.

Compare SV Kits

Kit	Panels	Assembled size	Lit area
5 Panel	5	5'6" × 7'11"	33 sq ft
6 Panel RGB	6	9'11" × 5'9"	42 sq ft
8 Panel	8	8'3" × 7'11"	52 sq ft
11 Panel	11	11'0" × 7'11"	72 sq ft
11 Panel w/Border	11	11'11" × 8'0"	72 sq ft
Diamond Compact	Lattice	11'11" × 8'0"	See listing
14 Panel w/Border	14	15'11" × 8'0"	91 sq ft
Diamond w/Border	Lattice	15'11" × 8'0"	See listing
18 Panel w/Border	18	15'11" × 11'11"	117 sq ft
Diamond XL	Lattice	15'11" × 11'11"	See listing
22 Panel w/Border	22	15'11" × 15'11"	144 sq ft
30 Panel Commercial	30	15'11" × 15'11"	196 sq ft
11 Panel RGB Framed	11	19'10" × 6'4"	77 sq ft

Sizes are finished footprints at the measured hex pitch. Lit area is the lit hexagon area inside that footprint.
