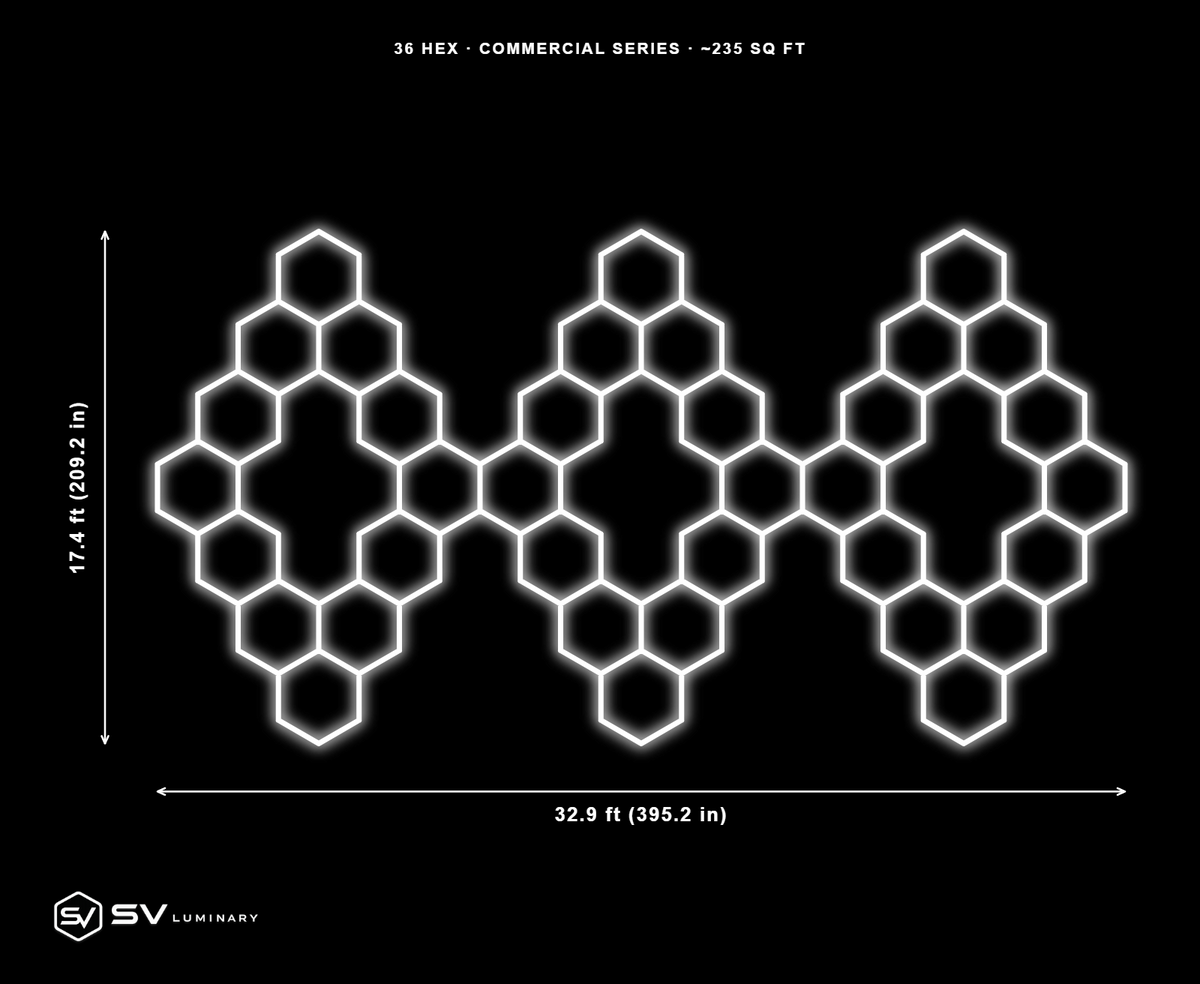

Three diamonds, one unbroken run. The Triple Diamond is a statement ceiling rather than a grid: thirty-six hexagons arranged into three open diamonds that join corner to corner and light as a single connected piece. It spans 32.9 feet wide and 17.4 feet deep, so it wants a room with real depth. Shop bays, showroom floors, barn ceilings, detail studios.
Built the way every SV kit is built. Aluminum frames, copper wiring, fire-resistant connectors, 6500K at CRI above 90. The whole piece runs off one switched feed line. Spare tubes and connectors ship in the box, and the 2-year warranty covers the parts you hope you never need.
Made to order, sold and supported by a family-owned Dallas-Fort Worth business. This is not a cheap import kit. Free shipping, and free custom layout design if you want this adapted to your exact ceiling before you buy.
Specs
Panel count
36 hexagon panels
Assembled size
32'11" W × 17'5" H (395.23" × 209.17")
Lit area
235 sq ft of lit hexagon
Ingress rating
IP54
Dimming
Full brightness, fixed (non-dimmable)
Install options
Flush mount (included) or suspended (cable kit)
Warranty
2 years, spare parts included
Tolerance
Assembled sizes are the finished footprint and are accurate to about 2 in. Tube and rail lengths are fixed, so the overall size lands on set increments rather than any dimension you name.
Power Requirements
Total draw
~1,032W (~9.4A at 110V)
Power feeds
Ships pre-split across 3 power feeds so no single run is overloaded
Electrical
Have a licensed electrician confirm the circuit you connect to can carry the load shown above.
What's in the Box
172 LED hex tubes (pre-configured 36-panel layout, one connected piece)
All connectors: 120° Y, 2-way, and 3-way T
Power cables, zip ties, and mounting anchors for flush install
