Light a full four-car garage or shop with four of our flagship 14-panel framed kits, bundled together and discounted 10% off buying them separately. Four matching honeycomb arrays, one per bay, roughly 254,000 lumens of 6500K daylight across the whole space. The proven 14-panel kit, just times four.
Why the Bundle
A four-car garage is really four bays. Rather than one oversized custom array, this bundle gives you four of the exact 14-panel framed kit people already love, so each bay gets its own clean honeycomb. You save 10% versus buying four 14-panel kits on their own, and every kit ships complete with its own frames, connectors, cables, and spares.
The Build, Four Times Over
Aluminum frames throughout, every array, every border. No sag, no warp.
Copper wiring, 3-pin locking connectors at every joint.
Fire-resistant connectors, all of them.
Spare parts included with each kit and stocked in-house.
2-year warranty from a DFW team you can reach.
Specs
Configuration

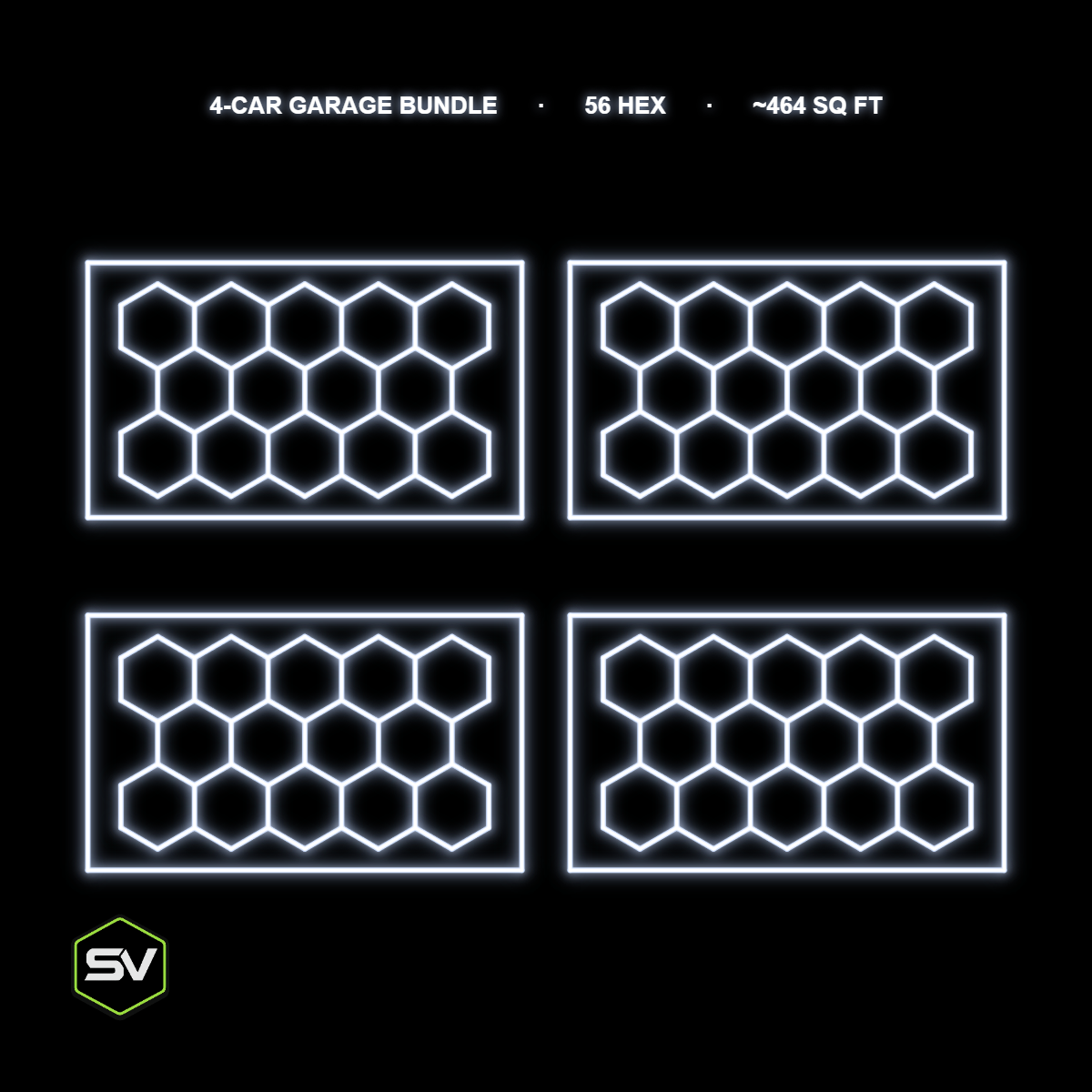

Four complete 14-panel framed kits (56 hex panels total)
Coverage
One array per bay across a four-car garage. Each array is approx. 15'10" W x 7'4" H.
Brightness
~254,000 lumens total (4 x ~63,500) · 6500K daylight white · CRI ≥90
Electrical
AC110V · ~2,136W total (4 x ~534W) · ~19.5A total
Frames
Aluminum, no sag, no warp
Wiring
Copper, 3-pin locking connectors
Dimming
Full brightness, fixed (non-dimmable)
Install options
Flush mount (included) or suspended (cable kit)
Warranty
2 years, spare parts included
Power Requirements, Read Before You Buy
Total draw
~2,136W (~19.5A at 110V) across all four arrays
Layout
Four independent arrays, each on its own power feeds, so the load is naturally divided across the garage
Electrical
This is a high total draw, well beyond what a typical single household circuit carries. A licensed electrician should size the circuits and breakers for your panel before install. Send us your layout and we will map which array goes on which circuit.
Power figures are calculated from component wattage (6W short tubes, 16W border rails). Confirm exact load against the manufacturer spec sheet. This is not a substitute for a licensed electrician's assessment of your panel.
What's in the Box
Four complete 14-panel framed kits (each: 57 LED hex tubes plus 12 border rails)
Full connector set for each kit: 120° Y, 2-way, 3-way T, and corners
Power cables, zip ties, and mounting anchors for all four
Spare parts kit with each
Planning a four-car build? Talk to us first. We will confirm your bay dimensions, map the array spacing, and spec the electrical. Reach out. We install these across DFW.
