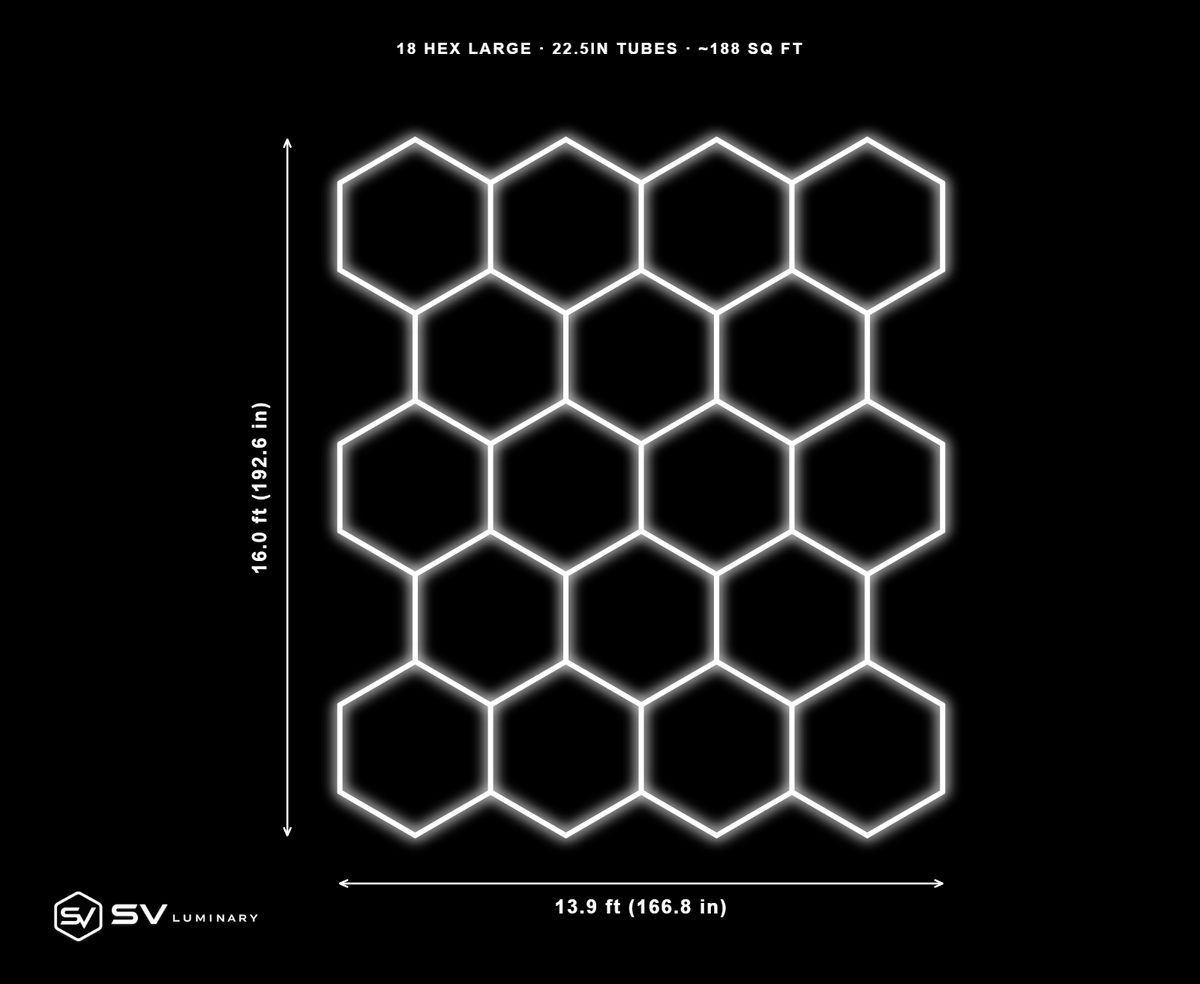

The Large series, built from our 22.5-inch tubes for hexagons nearly twice the footprint of a standard kit. Eighteen oversized hexes in a fuller block spanning about 13.9 by 16.1 feet, the biggest single Large layout, made to order.
Why Go Large
Large hexes read as bold, architectural lighting, not a tight honeycomb. Fewer, bigger shapes cover a room fast and photograph beautifully. Same format as the big-name Large kits, with aluminum frames, copper 3-pin wiring, and a real DFW team behind it.
Build Quality
Aluminum frames. No sag, no warp at the larger span.
Copper wiring, 3-pin locking connectors.
Fire-resistant connectors.
Spare parts included and stocked in-house.
2-year warranty from a team you can reach.
Specs
Panel count
18 large hexagons
Assembled size
13'11" W × 16'1" H (166.80" × 192.60")
Lit area
188 sq ft of lit hexagon
Brightness
~68,160 lumens · 6500K daylight white
Frames
Aluminum, no sag, no warp
Wiring
Copper, 3-pin locking connectors
Ingress rating
IP54
Dimming
Full brightness, fixed (non-dimmable)
Install options
Flush mount (included) or suspended (cable kit)
Warranty
2 years, spare parts included
Tolerance
Assembled sizes are the finished footprint and are accurate to about 2 in. Tube and rail lengths are fixed, so the overall size lands on set increments rather than any dimension you name.
Power Requirements
Total draw
~568W (~5.2A at 110V)
Power feeds
Ships pre-split across 2 power feeds so no single run is overloaded
Electrical
Have a licensed electrician confirm the circuit you connect to can carry the load shown above.
What's in the Box
71 × 22.5" LED tubes (pre-configured 18-hex layout)
Full connector set and power cables
Zip ties and mounting anchors
Spare parts
Made to order. Want it sized to your space instead? Send your dimensions for a free custom layout. Local to DFW? We install too.
