The Large series, built from our 22.5-inch tubes for hexagons nearly twice the footprint of a standard kit. Eight oversized hexes covering about 10 by 10 feet, the same big-hex look the major brands sell, made to order, with the same build quality and support we put behind everything.
Why Go Large
Large hexes read as bold, architectural lighting, not a tight honeycomb. Fewer, bigger shapes cover a room fast and photograph beautifully. This is the same format as the big-name Large kits, with aluminum frames, copper 3-pin wiring, and a real DFW team behind it.
Build Quality
Aluminum frames. No sag, no warp at the larger span.
Copper wiring, 3-pin locking connectors.
Fire-resistant connectors.
Spare parts included and stocked in-house.
2-year warranty from a team you can reach.
Specs
Panel count
8 large hexagons

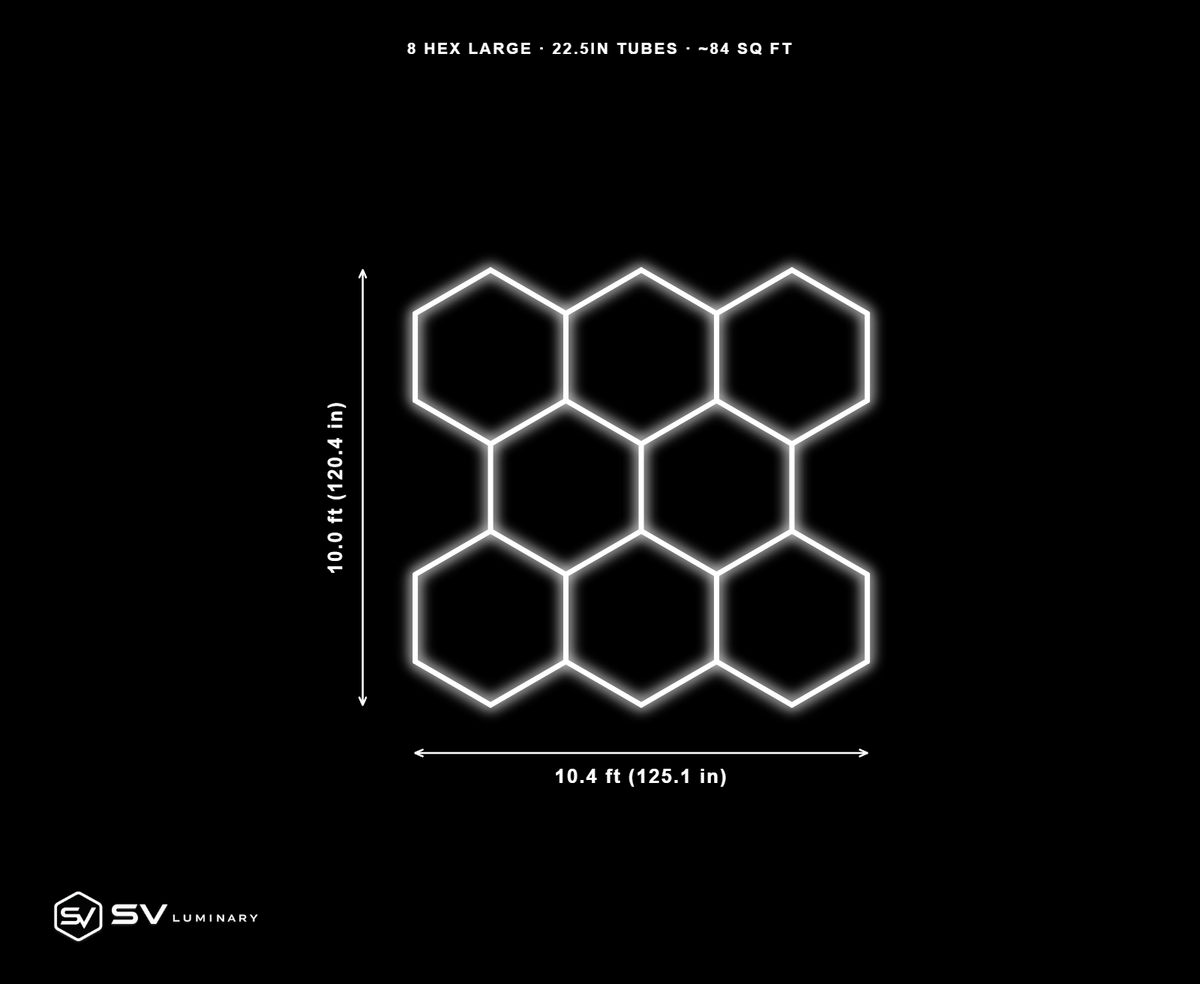

Assembled size
10'5" W × 10'0" H (125.10" × 120.37")
Lit area
84 sq ft of lit hexagon
Brightness
~33,600 lumens · 6500K daylight white
Frames
Aluminum, no sag, no warp
Wiring
Copper, 3-pin locking connectors
Ingress rating
IP54
Dimming
Full brightness, fixed (non-dimmable)
Install options
Flush mount (included) or suspended (cable kit)
Warranty
2 years, spare parts included
Tolerance
Assembled sizes are the finished footprint and are accurate to about 2 in. Tube and rail lengths are fixed, so the overall size lands on set increments rather than any dimension you name.
Power Requirements
Total draw
~280W (~2.5A at 110V)
Power feeds
Ships pre-split across power feeds so no single run is overloaded
Electrical
Have a licensed electrician confirm the circuit you connect to can carry the load shown above.
What's in the Box
35 × 22.5" LED tubes (pre-configured 8-hex layout)
Full connector set and power cables
Zip ties and mounting anchors
Spare parts
Made to order. Want it sized to your space instead? Send your dimensions for a free custom layout. Local to DFW? We install too.
